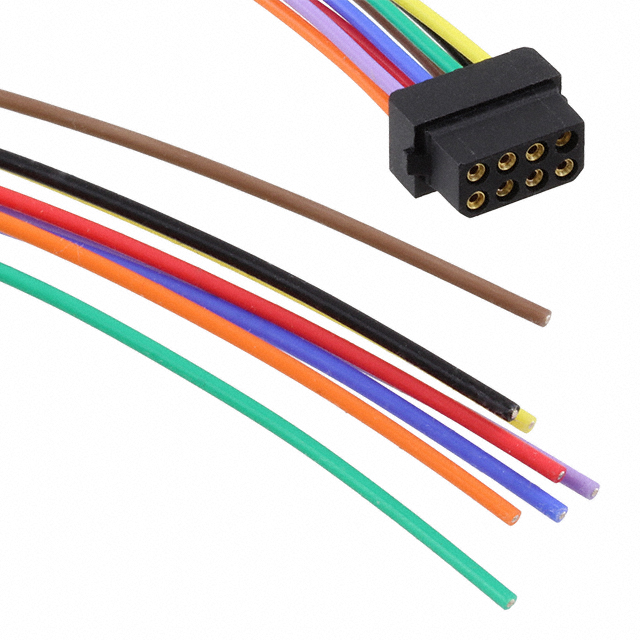

M80C108372C

Manufacturer :

Harwin

Product Category :

Mounting Option 1 :

LOCKING

Additional Feature :

RoHS Compliant

Series :

Datamate

Cable Length :

458mm

REACH SVHC :

Unknown

Connector Type :

Socket to Individual Wire Leads

Filter Feature :

No

Number of Rows :

2

Length :

457.2mm

Contact Finish :

Gold

Cable Termination :

Crimp

JESD-609 Code :

e4

RoHS Status :

ROHS3 Compliant

IEC Conformance :

No

Durability :

500 Cycles

Connector Type B :

Connector

Operating Temperature (Min) :

-55°C

Voltage - Rated :

120V

Reliability :

COMMERCIAL

Published :

2006

Gender :

FEMALE

Insulation Resistance :

100000000Ohm

Rated Current (Signal) :

3A

Contact Design :

PREASSEM CONN

Reach Compliance Code :

not_compliant

Number of Pins :

8

Withdrawl Force-Min :

.1946 N

Contact Pattern :

RECTANGULAR

Wire/Cable Gauge :

26 AWG

Contact Style :

RND PIN-SKT

Contact Material :

Brass

Mating Contact Pitch :

0.079 inch

Factory Lead Time :

16 Weeks

MIL Conformance :

No

Color :

Multiple, Individual

Mating Contact Row Spacing :

0.079 inch

Reference Standard :

UL

ECCN Code :

EAR99

Voltage - Rated DC :

120V

Packaging :

Bulk

Current Rating :

3A

Mixed Contacts :

No

Contact Finish Thickness :

11.8μin 0.30μm

Total Number of Contacts :

8

DIN Conformance :

No

Pbfree Code :

yes

Connector Type A :

Crimp, Socket

Empty Shell :

No

Moisture Sensitivity Level (MSL) :

Not Applicable

UL Flammability Code :

94V-0

Insulation Material :

HIGH TEMP POLYESTER

Option :

GENERAL PURPOSE
