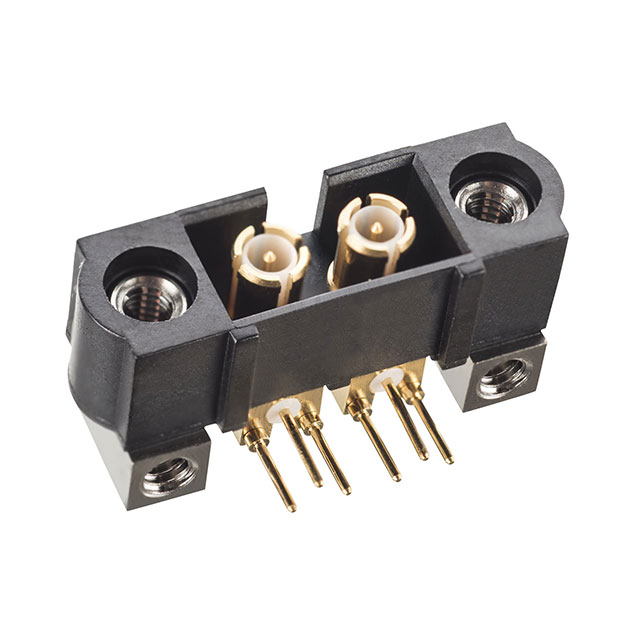

M80-MH313M5-02

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Feature :

Mating Flange, Mounting Flange

Published :

2015

Number of Positions Loaded :

All

Durability :

500 Cycles

Pitch - Mating :

0.157 4.00mm

Mount :

Through Hole

Operating Temperature :

-55°C~125°C

Body Length or Diameter :

0.709 inch

HTS Code :

8536.69.40.40

Insulation Height :

0.220 5.60mm

Mounting Type :

Through Hole, Right Angle

Termination :

Solder

Insulation Color :

Black

Contact Shape :

Circular

Reach Compliance Code :

not_compliant

Number of Rows :

1

Number of Conductors :

ONE

Fastening Type :

Threaded

Number of Positions :

2 (Coax)

Body Depth :

0.339 inch

Factory Lead Time :

13 Weeks

Contact Finish - Mating :

Gold

Reliability :

COMMERCIAL

Total Number of Contacts :

2

Shrouding :

Shrouded - 4 Wall

Reference Standard :

UL

Style :

Board to Board or Cable

Contact Resistance :

6mOhm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Material Flammability Rating :

UL94 V-0

Packaging :

Tube

Mixed Contacts :

yes

Contact Material :

COPPER ALLOY

Contact Type :

Male Pin, Coaxial

RoHS Status :

ROHS3 Compliant

Number of Pins :

2

Series :

Datamate Coax

Connector Type :

Header
