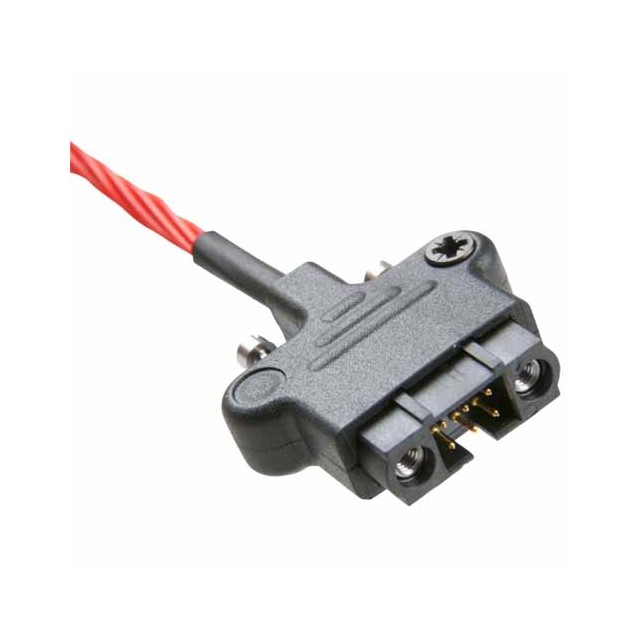

M80-9435005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Number of Rows :

2

IEC Conformance :

No

Mounting Type :

Free Hanging (In-Line)

JESD-609 Code :

e4

Operating Temperature (Min) :

-55°C

Polarization Key :

POLARIZED HOUSING

Packaging :

Bulk

Series :

Datamate J-Tek

Wire Type :

Discrete

Cable Termination :

Crimp

Connector Type :

Receptacle

Wire Gauge :

22 AWG

Rated Current (Signal) :

3A

Contact Material :

Brass

Reliability :

COMMERCIAL

Row Spacing :

0.079 (2.00mm)

Pbfree Code :

yes

Additional Feature :

RoHS Compliant

Contact Type :

Female Socket

Published :

2015

Filter Feature :

No

Total Number of Contacts :

50

Contact Finish Thickness :

10.0μin 0.25μm

RoHS Status :

ROHS3 Compliant

UL Flammability Code :

94V-0

Feature :

Cable Hood Kit, Jackscrews

Insulation Resistance :

100000000Ohm

Reach Compliance Code :

not_compliant

Contact Finish :

Gold

Factory Lead Time :

16 Weeks

Color :

Black

MIL Conformance :

No

DIN Conformance :

No

Mixed Contacts :

No

Mount :

Free Hanging

Wire/Cable Gauge :

22 AWG

Number of Positions :

50

Pitch :

0.079 2.00mm

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Design :

PREASSEM CONN

Reference Standard :

UL

Withdrawl Force-Min :

.1946 N

Option :

GENERAL PURPOSE
