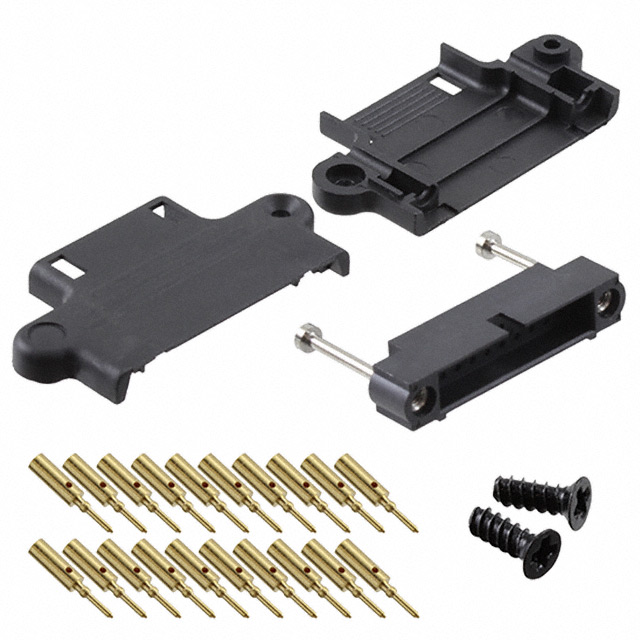

M80-9432005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Cable Termination :

Crimp

JESD-609 Code :

e4

Mixed Contacts :

No

Mount :

Free Hanging

Radiation Hardening :

No

Packaging :

Bulk

Reference Standard :

UL

Wire Type :

Discrete

Pitch :

0.079 2.00mm

RoHS Status :

ROHS3 Compliant

Contact Type :

Female Socket

Wire Gauge :

22 AWG

Contact Finish :

Gold

DIN Conformance :

No

MIL Conformance :

No

Filter Feature :

No

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Wire/Cable Gauge :

22 AWG

Published :

2015

Withdrawl Force-Min :

.1946 N

Option :

GENERAL PURPOSE

Contact Material :

Brass

Number of Rows :

2

Durability :

500 Cycles

Pbfree Code :

yes

Total Number of Contacts :

20

Factory Lead Time :

16 Weeks

Reliability :

COMMERCIAL

Color :

Black

Additional Feature :

RoHS Compliant

Series :

Datamate J-Tek

Mounting Type :

Free Hanging (In-Line)

Connector Type :

Receptacle

UL Flammability Code :

94V-0

Insulation Resistance :

100000000Ohm

Rated Current (Signal) :

3A

Number of Positions :

20

Polarization Key :

POLARIZED HOUSING

Feature :

Cable Hood Kit, Jackscrews

Body Length or Diameter :

1.555 inch

IEC Conformance :

No

Contact Design :

PREASSEM CONN

Contact Finish Thickness :

10.0μin 0.25μm

Operating Temperature (Min) :

-55°C

Row Spacing :

0.079 (2.00mm)

Gender :

Male

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
