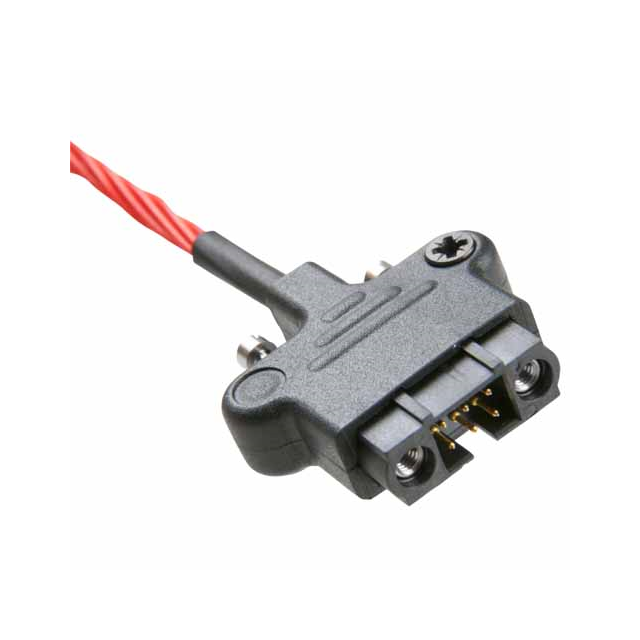

M80-9425005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Rated Current (Signal) :

3A

Pbfree Code :

yes

Max Operating Temperature :

125°C

Total Number of Contacts :

50

UL Flammability Code :

94V-0

Mixed Contacts :

No

Published :

2012

Current Rating :

3A

Max Current Rating :

3A

Feature :

Cable Hood Kit, Jackscrews

Cable Termination :

Crimp

Series :

Datamate J-Tek

Connector Type :

Receptacle

Wire Gauge (Max) :

28 AWG

Voltage - Rated :

120V

IEC Conformance :

No

Color :

Black

REACH SVHC :

No SVHC

Factory Lead Time :

13 Weeks

RoHS Status :

ROHS3 Compliant

Housing Material :

Polyphenylene

Orientation :

Straight

Contact Finish Thickness :

10.0μin 0.25μm

Contact Finish :

Gold

JESD-609 Code :

e4

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Depth :

23.6mm

Filter Feature :

No

Row Spacing :

0.079 (2.00mm)

Wire Gauge (Min) :

24 AWG

Gender :

Male

Contact Material :

Brass

Contact Design :

LOOSE

Max Voltage Rating (AC) :

120V

Option :

GENERAL PURPOSE

Wire Gauge :

24-28 AWG

Mounting Type :

Free Hanging (In-Line)

Wire Type :

Discrete

Contact Resistance :

25mOhm

Contact Type :

Female Socket

Number of Positions :

50

Pitch :

0.079 2.00mm

Mount :

Free Hanging

DIN Conformance :

No

Radiation Hardening :

No

Reference Standard :

UL

Insulation Resistance :

100000000Ohm

Packaging :

Bulk

Min Operating Temperature :

-55°C

MIL Conformance :

No

Number of Rows :

2

Length :

69.5mm
