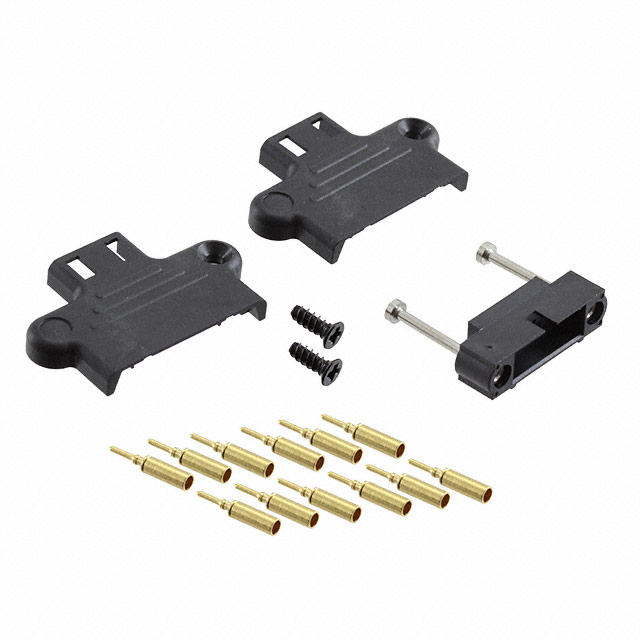

M80-9421205

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

JESD-609 Code :

e4

RoHS Status :

ROHS3 Compliant

DIN Conformance :

No

Mounting Type :

Free Hanging (In-Line)

HTS Code :

8536.69.40.40

MIL Conformance :

No

Number of Rows :

2

Series :

Datamate J-Tek

Pbfree Code :

yes

UL Flammability Code :

94V-0

Contact Finish Thickness :

10.0μin 0.25μm

Insulation Resistance :

100000000Ohm

Durability :

500 Cycles

Wire Gauge :

24-28 AWG

Cable Termination :

Crimp

Color :

Black

Pitch :

0.079 2.00mm

Packaging :

Bulk

Total Number of Contacts :

12

Feature :

Cable Hood Kit, Jackscrews

Contact Design :

LOOSE

Wire Gauge (Min) :

24 AWG

Contact Material :

Brass

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Rated Current (Signal) :

3A

Published :

2012

Factory Lead Time :

13 Weeks

Mount :

Free Hanging

Contact Type :

Female Socket

Connector Type :

Receptacle

Reliability :

COMMERCIAL

IEC Conformance :

No

Operating Temperature (Min) :

-55°C

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Wire Type :

Discrete

Contact Finish :

Gold

Number of Positions :

12

Row Spacing :

0.079 (2.00mm)

Wire Gauge (Max) :

28 AWG

Reference Standard :

UL

ECCN Code :

EAR99

Mixed Contacts :

No

Option :

GENERAL PURPOSE
