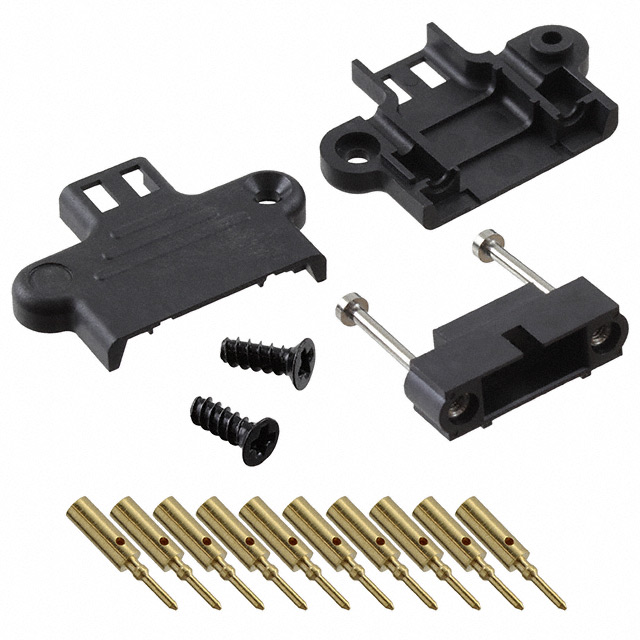

M80-9421005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Pbfree Code :

yes

Wire Gauge (Min) :

24 AWG

Contact Finish Thickness :

10.0μin 0.25μm

Mounting Type :

Free Hanging (In-Line)

MIL Conformance :

No

Row Spacing :

0.079 (2.00mm)

Option :

GENERAL PURPOSE

Wire Type :

Discrete

Total Number of Contacts :

10

Packaging :

Bulk

REACH SVHC :

No SVHC

UL Flammability Code :

94V-0

Series :

Datamate J-Tek

Rated Current (Signal) :

3A

Cable Termination :

Crimp

Factory Lead Time :

16 Weeks

Body Length or Diameter :

1.161 inch

Contact Material :

Brass

ECCN Code :

EAR99

Number of Positions :

10

HTS Code :

8536.69.40.40

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge (Max) :

28 AWG

Reliability :

COMMERCIAL

DIN Conformance :

No

Housing Material :

Polyamide

Feature :

Cable Hood Kit, Jackscrews

Filter Feature :

No

Radiation Hardening :

No

Voltage - Rated :

360V

Contact Finish :

Gold

Reference Standard :

UL

Mixed Contacts :

No

Contact Type :

Female Socket

Number of Rows :

2

Wire Gauge :

24-28 AWG

JESD-609 Code :

e4

Mount :

Free Hanging

Pitch :

0.079 2.00mm

Operating Temperature (Min) :

-55°C

Connector Type :

Receptacle

Contact Gender :

Male

RoHS Status :

ROHS3 Compliant

IEC Conformance :

No

Color :

Black

Published :

2012

Current Rating :

3A

Durability :

500 Cycles
