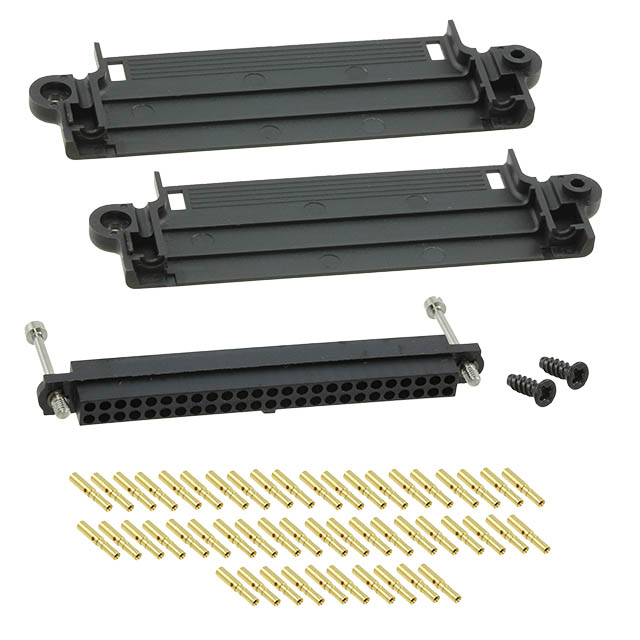

M80-9415005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Wire Type :

Discrete

Row Spacing :

0.079 (2.00mm)

MIL Conformance :

No

Radiation Hardening :

No

Factory Lead Time :

16 Weeks

Wire Gauge :

22 AWG

Series :

Datamate J-Tek

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

69.5mm

Total Number of Contacts :

50

Filter Feature :

No

Packaging :

Bulk

Insulation Resistance :

100000000Ohm

Pitch :

0.079 2.00mm

JESD-609 Code :

e4

Max Operating Temperature :

125°C

Body Depth :

0.787 inch

Reliability :

COMMERCIAL

Published :

2012

Max Voltage Rating (AC) :

120V

Min Operating Temperature :

-55°C

Mount :

Free Hanging

RoHS Status :

ROHS3 Compliant

Contact Finish Thickness :

11.8μin 0.30μm

Additional Feature :

RoHS Compliant

Wire/Cable Gauge :

22 AWG

Pbfree Code :

yes

Rated Current (Signal) :

3A

Contact Design :

LOOSE

Number of Rows :

2

Mounting Type :

Free Hanging (In-Line)

Max Current Rating :

3A

Connector Type :

Receptacle

Contact Type :

Female Socket

Contact Resistance :

25mOhm

Mixed Contacts :

No

Contact Finish :

Gold

Cable Termination :

Crimp

Color :

Black

Number of Positions :

50

Reference Standard :

UL

Contact Material :

Copper

Feature :

Cable Hood Kit, Jackscrews

Housing Material :

Polyphenylene

IEC Conformance :

No

Body/Shell Style :

PLUG

Option :

GENERAL PURPOSE

Orientation :

Straight

DIN Conformance :

No

UL Flammability Code :

94V-0
