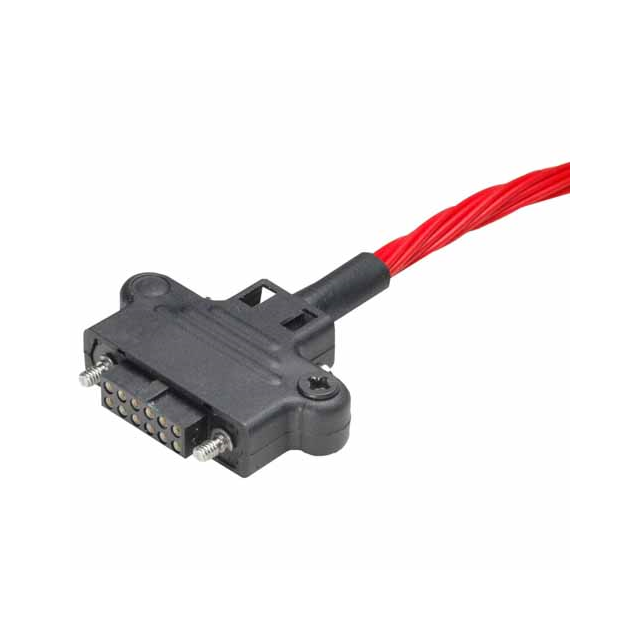

M80-9412005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Additional Feature :

RoHS Compliant

Reference Standard :

UL

Reliability :

COMMERCIAL

Reach Compliance Code :

not_compliant

Mixed Contacts :

No

MIL Conformance :

No

Length :

39.5mm

Body/Shell Style :

PLUG

Number of Positions :

20

Wire Type :

Discrete

Option :

GENERAL PURPOSE

Contact Material :

Copper

Wire Gauge :

22 AWG

Feature :

Cable Hood Kit, Jackscrews

Insulation Resistance :

100000000Ohm

Mounting Type :

Free Hanging (In-Line)

Durability :

500 Cycles

Mount :

Free Hanging

Filter Feature :

No

Packaging :

Bulk

Color :

Black

Wire/Cable Gauge :

22 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Rated Current (Signal) :

3A

Series :

Datamate J-Tek

Published :

2012

Min Operating Temperature :

-55°C

DIN Conformance :

No

Factory Lead Time :

13 Weeks

Contact Resistance :

25mOhm

IEC Conformance :

No

Contact Type :

Female Socket

Total Number of Contacts :

20

Body Depth :

0.787 inch

Connector Type :

Receptacle

Pbfree Code :

yes

Orientation :

Straight

Cable Termination :

Crimp

Contact Finish :

Gold

UL Flammability Code :

94V-0

Max Current Rating :

3A

Contact Design :

LOOSE

JESD-609 Code :

e4

RoHS Status :

ROHS3 Compliant

Contact Finish Thickness :

11.8μin 0.30μm

Pitch :

0.079 2.00mm

Row Spacing :

0.079 (2.00mm)

Max Operating Temperature :

125°C

Housing Material :

Polyphenylene

Max Voltage Rating (AC) :

120V

Number of Rows :

2
