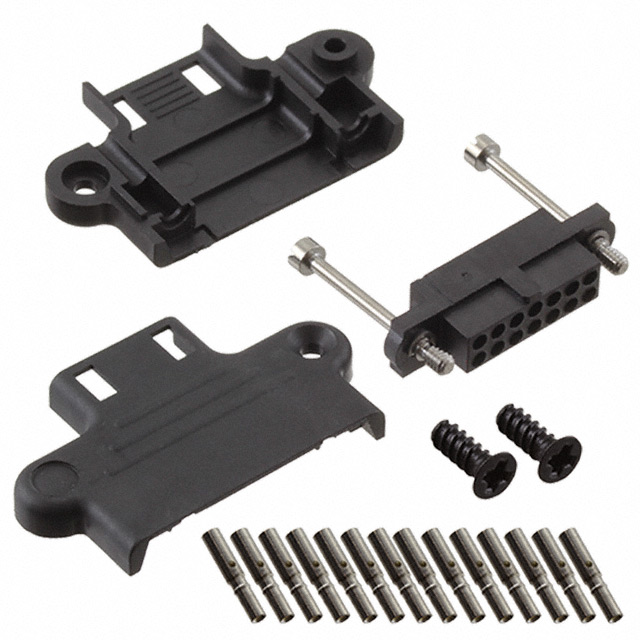

M80-9411442

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Max Current Rating :

3A

MIL Conformance :

No

Pbfree Code :

yes

Number of Positions :

14

Length :

33.5mm

Wire Gauge :

22 AWG

Contact Finish :

Gold

Wire/Cable Gauge :

22 AWG

Body/Shell Style :

PLUG

Option :

GENERAL PURPOSE

IEC Conformance :

No

Max Operating Temperature :

125°C

Wire Type :

Discrete

Orientation :

Straight

DIN Conformance :

No

Contact Type :

Female Socket

Moisture Sensitivity Level (MSL) :

Not Applicable

Durability :

500 Cycles

Contact Material :

Copper

Contact Finish Thickness :

11.8μin 0.30μm

RoHS Status :

ROHS3 Compliant

JESD-609 Code :

e3

Color :

Black

Insulation Resistance :

100MOhm

Voltage - Rated :

800V

Current Rating :

3A

Min Operating Temperature :

-55°C

Packaging :

Bulk

Max Voltage Rating (AC) :

120V

Rated Current (Signal) :

3A

Reliability :

COMMERCIAL

Flammability Rating :

UL94 V-0

Mixed Contacts :

No

Body Depth :

0.787 inch

Row Spacing :

0.079 (2.00mm)

Housing Material :

Polyphenylene

Pitch :

0.079 2.00mm

Reference Standard :

UL

UL Flammability Code :

94V-0

Filter Feature :

No

Total Number of Contacts :

14

Number of Rows :

2

Reach Compliance Code :

not_compliant

Series :

Datamate J-Tek

Additional Feature :

RoHS Compliant

Cable Termination :

Crimp

Contact Gender :

FEMALE

Connector Type :

Receptacle

Mounting Type :

Free Hanging (In-Line)

Feature :

Cable Hood Kit, Jackscrews

Contact Resistance :

25mOhm

Factory Lead Time :

13 Weeks
