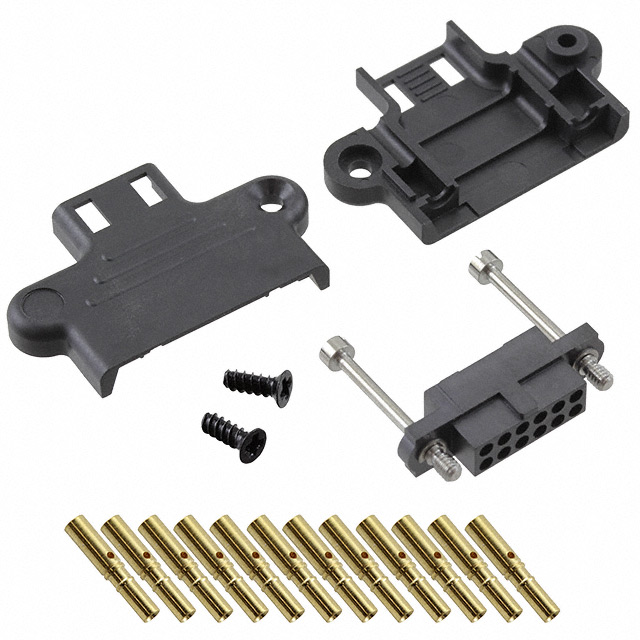

M80-9411205

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Wire Gauge :

22 AWG

Reference Standard :

UL

Insulation Resistance :

100000000Ohm

Total Number of Contacts :

12

DIN Conformance :

No

Series :

Datamate J-Tek

Pbfree Code :

yes

Mount :

Free Hanging

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire/Cable Gauge :

22 AWG

Feature :

Cable Hood Kit, Jackscrews

Factory Lead Time :

16 Weeks

Contact Material :

BERYLLIUM COPPER

MIL Conformance :

No

Filter Feature :

No

Body Depth :

0.787 inch

Row Spacing :

0.079 (2.00mm)

HTS Code :

8536.69.40.40

Operating Temperature (Min) :

-55°C

Packaging :

Bulk

Mixed Contacts :

No

JESD-609 Code :

e4

Reach Compliance Code :

not_compliant

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

IEC Conformance :

No

Number of Rows :

2

Contact Design :

LOOSE

Wire Type :

Discrete

Number of Positions :

12

RoHS Status :

ROHS3 Compliant

Body/Shell Style :

PLUG

UL Flammability Code :

94V-0

Connector Type :

Receptacle

Option :

GENERAL PURPOSE

Cable Termination :

Crimp

ECCN Code :

EAR99

Contact Finish Thickness :

11.8μin 0.30μm

Rated Current (Signal) :

3A

Contact Type :

Female Socket

Reliability :

COMMERCIAL

Contact Finish :

Gold

Color :

Black

Additional Feature :

RoHS Compliant

Mounting Type :

Free Hanging (In-Line)

Pitch :

0.079 2.00mm

Durability :

500 Cycles
