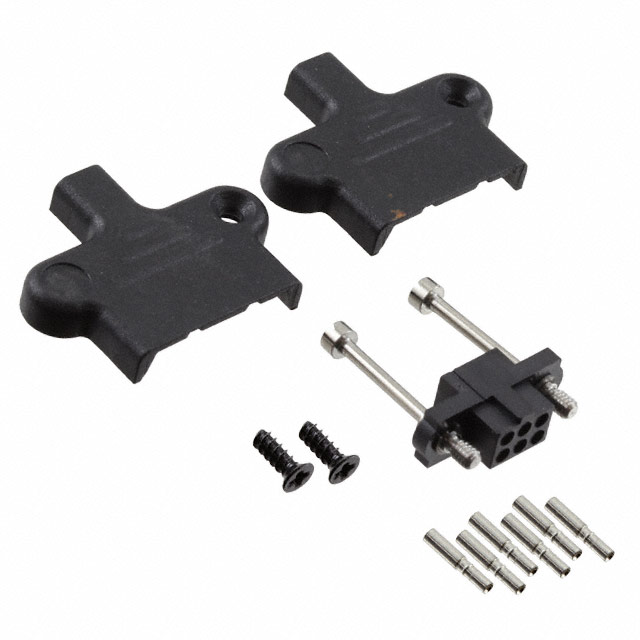

M80-9410642

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Durability :

500 Cycles

Option :

GENERAL PURPOSE

Mounting Type :

Free Hanging (In-Line)

DIN Conformance :

No

Additional Feature :

RoHS Compliant

Body Depth :

0.787 inch

Connector Type :

Receptacle

Pitch :

0.079 2.00mm

Packaging :

Bulk

Factory Lead Time :

17 Weeks

IEC Conformance :

No

MIL Conformance :

No

Reliability :

COMMERCIAL

Insulation Resistance :

100000000Ohm

Pbfree Code :

yes

Feature :

Cable Hood Kit, Jackscrews

Body/Shell Style :

PLUG

Filter Feature :

No

Series :

Datamate J-Tek

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Rows :

2

Cable Termination :

Crimp

Contact Finish :

Gold

JESD-609 Code :

e3

Number of Positions :

6

Wire Gauge :

22 AWG

Color :

Black

Total Number of Contacts :

6

Rated Current (Signal) :

3A

Contact Finish Thickness :

11.8μin 0.30μm

Operating Temperature (Min) :

-55°C

Contact Type :

Female Socket

Reference Standard :

UL

Row Spacing :

0.079 (2.00mm)

Reach Compliance Code :

not_compliant

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Contact Design :

LOOSE

Body Length or Diameter :

1.004 inch

Contact Material :

NOT SPECIFIED

Mixed Contacts :

No

UL Flammability Code :

94V-0

Wire Type :

Discrete

RoHS Status :

ROHS3 Compliant
