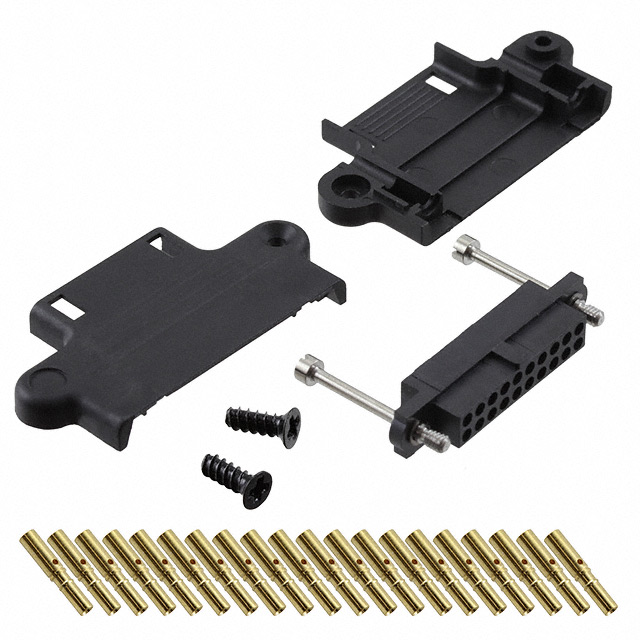

M80-9402005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Reliability :

COMMERCIAL

Pbfree Code :

yes

Mixed Contacts :

No

Number of Rows :

2

Pitch :

0.079 2.00mm

Wire Gauge (Max) :

28 AWG

Contact Finish Thickness :

11.8μin 0.30μm

IEC Conformance :

No

Contact Type :

Female Socket

Insulation Resistance :

100000000Ohm

Total Number of Contacts :

20

Contact Material :

Copper

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

16 Weeks

REACH SVHC :

No SVHC

Radiation Hardening :

No

Reference Standard :

UL

Mounting Type :

Free Hanging (In-Line)

Feature :

Cable Hood Kit, Jackscrews

Row Spacing :

0.079 (2.00mm)

DIN Conformance :

No

Operating Temperature (Min) :

-55°C

Number of Positions :

20

Mount :

Free Hanging

Body Depth :

0.787 inch

RoHS Status :

ROHS3 Compliant

Wire Type :

Discrete

UL Flammability Code :

94V-0

Option :

GENERAL PURPOSE

Published :

2012

Connector Type :

Receptacle

Rated Current (Signal) :

3A

Wire Gauge (Min) :

24 AWG

Cable Termination :

Crimp

Color :

Black

Durability :

500 Cycles

MIL Conformance :

No

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Contact Finish :

Gold

Wire Gauge :

24-28 AWG

Filter Feature :

No

Packaging :

Bulk

JESD-609 Code :

e4

Series :

Datamate J-Tek
