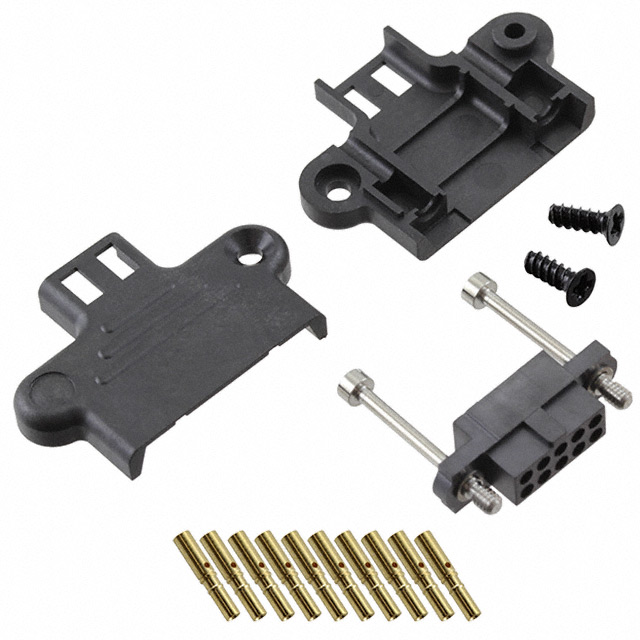

M80-9401005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Mixed Contacts :

No

Total Number of Contacts :

10

REACH SVHC :

No SVHC

DIN Conformance :

No

Reference Standard :

UL

Color :

Black

Wire Type :

Discrete

Pbfree Code :

yes

Wire Gauge (Max) :

28 AWG

Packaging :

Bulk

Rated Current (Signal) :

3A

Row Spacing :

0.079 (2.00mm)

ECCN Code :

EAR99

Operating Temperature (Min) :

-55°C

Number of Positions :

10

Contact Finish Thickness :

11.8μin 0.30μm

Contact Material :

Copper

Contact Type :

Female Socket

Series :

Datamate J-Tek

Durability :

500 Cycles

MIL Conformance :

No

Factory Lead Time :

16 Weeks

Wire Gauge :

24-28 AWG

Mounting Type :

Free Hanging (In-Line)

Reliability :

COMMERCIAL

Cable Termination :

Crimp

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

RoHS Status :

ROHS3 Compliant

HTS Code :

8536.69.40.40

Published :

2012

Wire Gauge (Min) :

24 AWG

Mount :

Free Hanging

Radiation Hardening :

No

Option :

GENERAL PURPOSE

UL Flammability Code :

94V-0

Body Length or Diameter :

0.886 inch

Feature :

Cable Hood Kit, Jackscrews

IEC Conformance :

No

Number of Rows :

2

Body Depth :

0.787 inch

Pitch :

0.079 2.00mm

Connector Type :

Receptacle

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish :

Gold

JESD-609 Code :

e4
