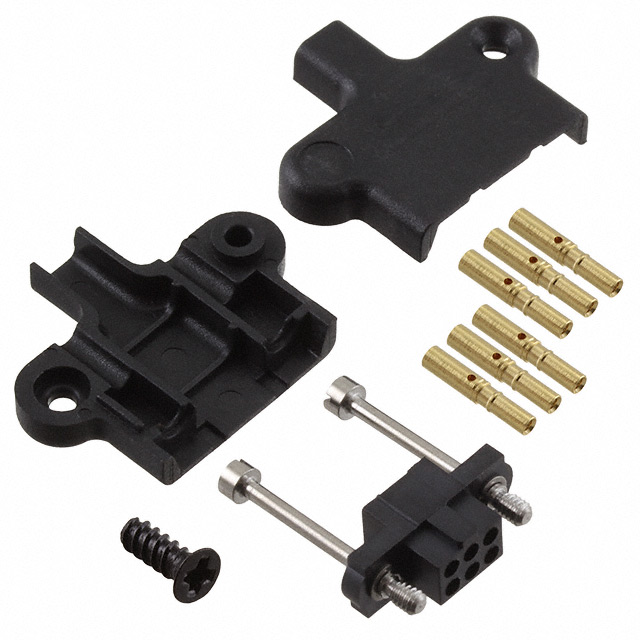

M80-9400605

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

MIL Conformance :

No

Durability :

500 Cycles

Mixed Contacts :

No

Insulation Resistance :

100000000Ohm

Packaging :

Bulk

Body Depth :

0.787 inch

Rated Current (Signal) :

3A

DIN Conformance :

No

Wire Gauge (Max) :

28 AWG

Published :

2012

Number of Rows :

2

Wire Type :

Discrete

Contact Type :

Female Socket

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge (Min) :

24 AWG

IEC Conformance :

No

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Cable Termination :

Crimp

Connector Type :

Receptacle

Color :

Black

Pbfree Code :

yes

RoHS Status :

ROHS3 Compliant

Reference Standard :

UL

Radiation Hardening :

No

Reliability :

COMMERCIAL

Wire Gauge :

24-28 AWG

Mounting Type :

Free Hanging (In-Line)

JESD-609 Code :

e4

Pitch :

0.079 2.00mm

Filter Feature :

No

Total Number of Contacts :

6

Series :

Datamate J-Tek

Feature :

Cable Hood Kit, Jackscrews

Row Spacing :

0.079 (2.00mm)

Operating Temperature (Min) :

-55°C

UL Flammability Code :

94V-0

Number of Positions :

6

Contact Material :

Copper

Contact Finish :

Gold

Mount :

Free Hanging

Contact Finish Thickness :

11.8μin 0.30μm

Factory Lead Time :

13 Weeks

Option :

GENERAL PURPOSE

REACH SVHC :

No SVHC
