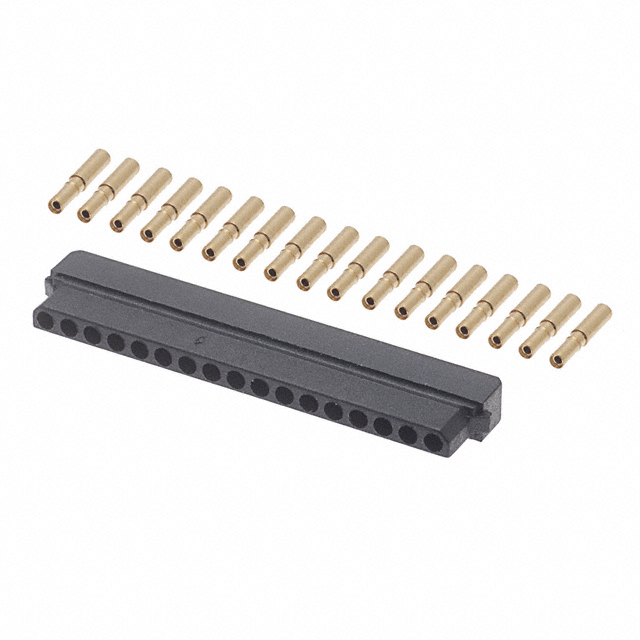

M80-8991705

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Contact Finish Thickness :

11.8μin 0.30μm

Mixed Contacts :

No

Pbfree Code :

yes

HTS Code :

8536.69.40.40

Color :

Black

Number of Conductors :

ONE

Contact Resistance :

25mOhm

Max Current Rating :

3A

UL Flammability Code :

94V-0

Mounting Type :

Free Hanging (In-Line)

Depth :

8.15mm

Reliability :

COMMERCIAL

Mount :

Free Hanging

Housing Material :

Thermoplastic

Min Operating Temperature :

-55°C

Current Rating :

3A

ECCN Code :

EAR99

Number of Positions :

17

Lead Pitch :

2mm

Rated Current (Signal) :

3A

Voltage - Rated :

120V

Reference Standard :

UL

MIL Conformance :

No

Wire Gauge :

22 AWG

IEC Conformance :

No

Connector Type :

Receptacle

Number of Rows :

1

Series :

Datamate L-Tek

Orientation :

Straight

Contact Material :

Brass

Factory Lead Time :

13 Weeks

Working Voltage :

120V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

REACH SVHC :

No SVHC

Total Number of Contacts :

17

Contact Finish :

Gold

Max Operating Temperature :

125°C

Fastening Type :

Locking Ramp

Packaging :

Bulk

Wire Type :

Discrete

Wire/Cable Gauge :

22 AWG

Contact Gender :

FEMALE

Insertion Force-Max :

2.78 N

Polarization Key :

POLARIZED HOUSING

Published :

2009

Durability :

500 Cycles

Cable Termination :

Crimp

Option :

GENERAL PURPOSE

Filter Feature :

No

Pitch :

0.079 2.00mm

Length :

37.15mm

Flammability Rating :

UL94 V-0

RoHS Status :

ROHS3 Compliant

JESD-609 Code :

e4

Max Voltage Rating (AC) :

120V

DIN Conformance :

No

Package / Case :

SIL

Radiation Hardening :

No

Contact Type :

Female Socket
