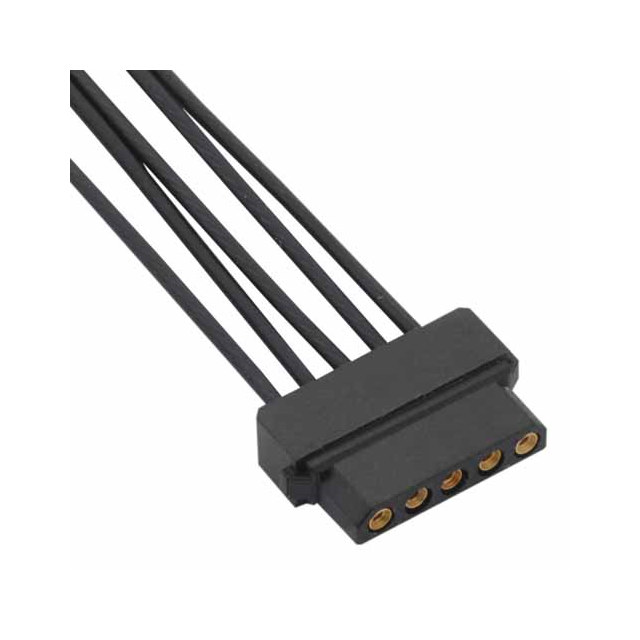

M80-8991701

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Color :

Black

Number of Rows :

1

JESD-609 Code :

e3

Contact Finish :

Gold

Factory Lead Time :

13 Weeks

HTS Code :

8536.69.40.40

Polarization Key :

POLARIZED HOUSING

Durability :

500 Cycles

MIL Conformance :

No

ECCN Code :

EAR99

Mixed Contacts :

No

Contact Finish Thickness :

11.8μin 0.30μm

Reference Standard :

UL

IEC Conformance :

No

Number of Positions :

17

Series :

Datamate L-Tek

Contact Type :

Female Socket

Mounting Type :

Free Hanging (In-Line)

Insertion Force-Max :

2.78 N

Wire Gauge :

22 AWG

Package / Case :

SIL

Pitch :

0.079 2.00mm

Reliability :

COMMERCIAL

Contact Resistance :

25mOhm

Contact Design :

PREASSEM CONN

Option :

GENERAL PURPOSE

RoHS Status :

ROHS3 Compliant

Rated Current (Signal) :

3A

Insulation Material :

GLASS FILLED POLYESTER

Number of Conductors :

ONE

Contact Material :

BERYLLIUM COPPER

DIN Conformance :

No

Pbfree Code :

yes

UL Flammability Code :

94V-0

Connector Type :

Receptacle

Filter Feature :

No

Operating Temperature (Min) :

-55°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Bulk

Cable Termination :

Crimp

Wire Type :

Discrete

Fastening Type :

Locking Ramp

Total Number of Contacts :

17
