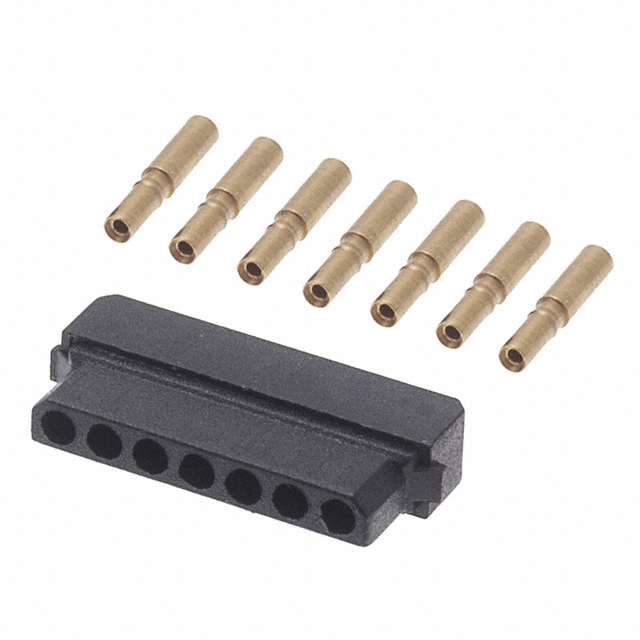

M80-8990705

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Number of Positions :

7

Number of Conductors :

ONE

IEC Conformance :

No

Contact Type :

Female Socket

Radiation Hardening :

No

ECCN Code :

EAR99

Mount :

Free Hanging

Filter Feature :

No

Number of Rows :

1

Polarization Key :

POLARIZED HOUSING

Wire Type :

Discrete

Contact Material :

Brass

Current Rating :

3A

REACH SVHC :

No SVHC

Voltage - Rated :

120V

Housing Material :

Polyester

Durability :

500 Cycles

JESD-609 Code :

e4

Series :

Datamate L-Tek

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

Factory Lead Time :

13 Weeks

Voltage - Rated DC :

120V

Cable Termination :

Crimp

Pbfree Code :

yes

Total Number of Contacts :

7

Contact Finish :

Gold

Orientation :

Straight

Wire Gauge :

22 AWG

Pitch :

0.079 2.00mm

Wire/Cable Gauge :

22 AWG

Depth :

8.15mm

Mounting Type :

Free Hanging (In-Line)

Min Operating Temperature :

-55°C

HTS Code :

8536.69.40.40

Contact Gender :

FEMALE

Contact Finish Thickness :

11.8μin 0.30μm

Published :

2001

Reliability :

COMMERCIAL

Max Current Rating :

3A

Max Operating Temperature :

125°C

Fastening Type :

Locking Ramp

Contact Resistance :

25mOhm

Length :

17.15mm

Flammability Rating :

UL94 V-0

Max Voltage Rating (AC) :

120V

Color :

Black

Option :

GENERAL PURPOSE

DIN Conformance :

No

MIL Conformance :

No

Reference Standard :

UL

Mixed Contacts :

No

Packaging :

Bulk

Connector Type :

Receptacle

RoHS Status :

ROHS3 Compliant

Rated Current (Signal) :

3A

Package / Case :

SIL
