M80-8990505

Share

Or copy the link below:

Mfr.Part #
M80-8990505
Manufacturer
Harwin
Package / Case
SIL
Datasheet
Download
Description
CONN RCPT 5POS CRIMP 22AWG GOLD
Stock
206
In Stock :
206

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Harwin
Product Category :
Free Hanging, Panel Mount
Contact Gender :
FEMALE
Orientation :
Straight
UL Flammability Code :
94V-0
Polarization Key :
POLARIZED HOUSING
MIL Conformance :
No
Published :
2001
Mounting Type :
Free Hanging (In-Line)
RoHS Status :
ROHS3 Compliant
REACH SVHC :
No SVHC
IEC Conformance :
No
Length :
13.15mm
Packaging :
Bulk
Option :
GENERAL PURPOSE
DIN Conformance :
No
Wire Gauge :
22 AWG
Wire Type :
Discrete
Contact Type :
Female Socket
Voltage - Rated :
120V
Number of Rows :
1
Reference Standard :
UL
Current Rating :
3A
Rated Current (Signal) :
3A
Number of Positions :
5
Filter Feature :
No
Contact Finish Thickness :
11.8μin 0.30μm
Max Operating Temperature :
125°C
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Pbfree Code :
yes
Contact Material :
Brass
Max Current Rating :
3A
Insertion Force-Max :
2.78 N
Wire/Cable Gauge :
22 AWG
Total Number of Contacts :
5
Connector Type :
Receptacle
Fastening Type :
Locking Ramp
Package / Case :
SIL
Voltage - Rated DC :
120V
Flammability Rating :
UL94 V-0
Contact Finish :
Gold
JESD-609 Code :
e4
Max Voltage Rating (AC) :
120V
Color :
Black
Housing Material :
Polyester
Min Operating Temperature :
-55°C
Factory Lead Time :
9 Weeks
Mount :
Free Hanging
Reliability :
COMMERCIAL
Pitch :
0.079 2.00mm
ECCN Code :
EAR99
Mixed Contacts :
No
Number of Conductors :
ONE
Reach Compliance Code :
not_compliant
Series :
Datamate L-Tek
Depth :
8.15mm
Cable Termination :
Crimp
Introducing Free Hanging, Panel Mount Harwin M80-8990505 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), Package / Case:SIL, M80-8990505 pinout, M80-8990505 datasheet PDF, M80-8990505 amp .Beyond Free Hanging, Panel Mount Harwin M80-8990505 ,we also offer 3-640440-5, 04ZR-8M-P, 61201023021, Our vast inventory has you covered. Contact us now for immediate solutions.

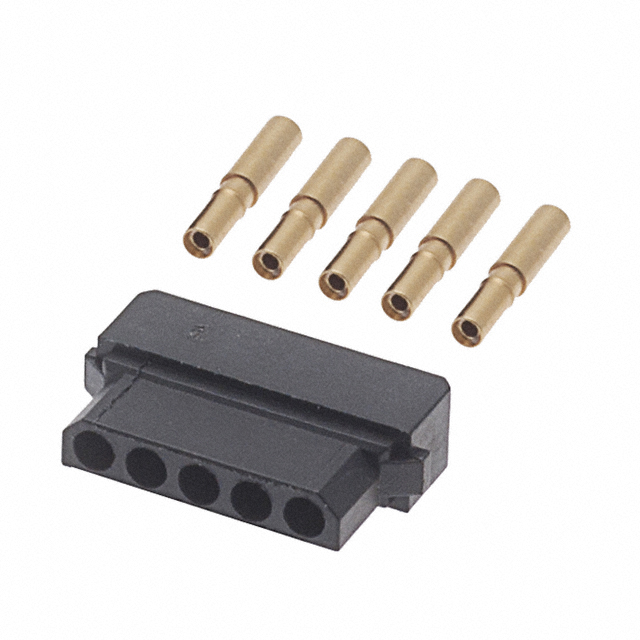

Harwin M80-8990505


M80-8990505 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from Harwin Inc. stock available at Xinshop
