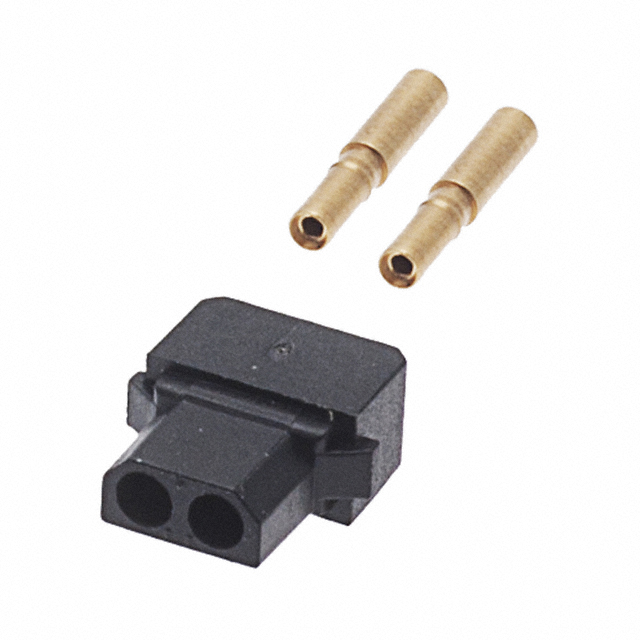

M80-8990205

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Wire Type :

Discrete

Max Operating Temperature :

125°C

Fastening Type :

Locking Ramp

MIL Conformance :

No

ECCN Code :

EAR99

Reliability :

COMMERCIAL

Min Operating Temperature :

-55°C

Polarization Key :

POLARIZED HOUSING

RoHS Status :

ROHS3 Compliant

Depth :

8.15mm

Contact Finish :

Gold

Option :

GENERAL PURPOSE

Pbfree Code :

yes

Contact Material :

Brass

REACH SVHC :

No SVHC

Wire/Cable Gauge :

22 AWG

Wire Gauge :

22 AWG

Total Number of Contacts :

2

Contact Gender :

FEMALE

HTS Code :

8536.69.40.40

Contact Type :

Female Socket

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Material :

Polyester

Color :

Black

Number of Rows :

1

Length :

7.15mm

Cable Termination :

Crimp

IEC Conformance :

No

Reference Standard :

UL

Max Voltage Rating (AC) :

120V

Durability :

500 Cycles

Voltage - Rated :

120V

Mixed Contacts :

No

Rated Current (Signal) :

3A

Flammability Rating :

UL94 V-0

DIN Conformance :

No

Orientation :

Straight

Contact Finish Thickness :

11.8μin 0.30μm

Reach Compliance Code :

not_compliant

Mount :

Free Hanging

Series :

Datamate L-Tek

Package / Case :

SIL

Max Current Rating :

3A

JESD-609 Code :

e4

Packaging :

Bulk

Number of Conductors :

ONE

Pitch :

0.079 2.00mm

Number of Positions :

2

Factory Lead Time :

9 Weeks

Mounting Type :

Free Hanging (In-Line)

Current Rating :

3A

Filter Feature :

No

Published :

2001

UL Flammability Code :

94V-0

Connector Type :

Receptacle
