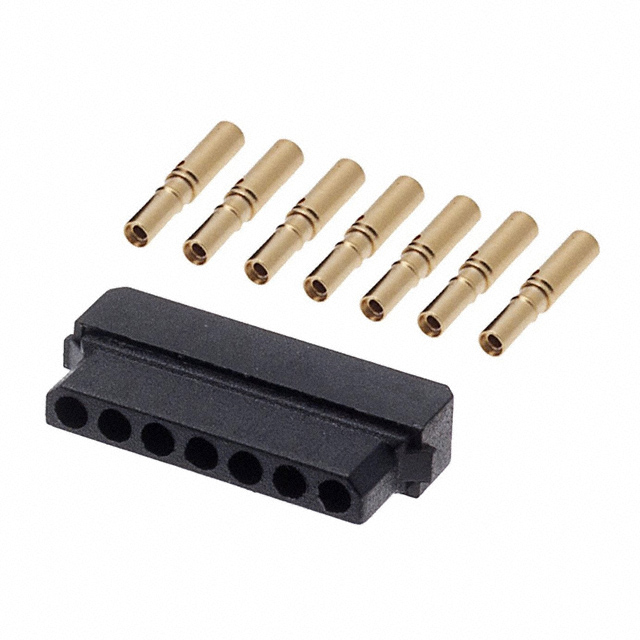

M80-8980705

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Series :

Datamate L-Tek

Length :

17.15mm

Filter Feature :

No

Max Voltage Rating (AC) :

120V

Reference Standard :

UL

RoHS Status :

ROHS3 Compliant

DIN Conformance :

No

Additional Feature :

RoHS Compliant

Mounting Type :

Free Hanging (In-Line)

REACH SVHC :

No SVHC

Min Operating Temperature :

-55°C

Reliability :

COMMERCIAL

Contact Finish :

Gold

Contact Resistance :

25mOhm

Polarization Key :

POLARIZED HOUSING

Rated Current (Signal) :

3A

Orientation :

Straight

UL Flammability Code :

94V-0

Depth :

8.15mm

Wire Gauge (Min) :

28 AWG

Pitch :

0.079 2.00mm

Wire Gauge (Max) :

24 AWG

Current Rating :

3A

Max Current Rating :

3A

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Max Operating Temperature :

125°C

Contact Material :

Brass

Radiation Hardening :

No

Contact Type :

Female Socket

Wire Type :

Discrete

Contact Finish Thickness :

11.8μin 0.30μm

MIL Conformance :

No

Cable Termination :

Crimp

Durability :

500 Cycles

Housing Material :

Polyester

Total Number of Contacts :

7

Voltage - Rated DC :

120V

Contact Gender :

FEMALE

Published :

2001

Package / Case :

SIL

Factory Lead Time :

13 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Flammability Rating :

UL94 V-0

Packaging :

Bulk

Number of Positions :

7

Fastening Type :

Locking Ramp

Mount :

Free Hanging

Voltage - Rated :

120V

Wire Gauge :

24-28 AWG

Pbfree Code :

yes

IEC Conformance :

No

Number of Rows :

1

JESD-609 Code :

e4

Connector Type :

Receptacle

Color :

Black
