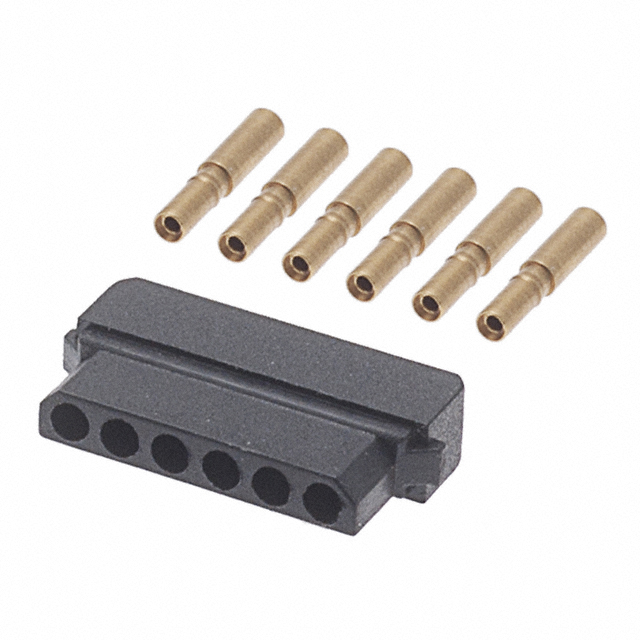

M80-8980605

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Color :

Black

Connector Type :

Receptacle

REACH SVHC :

No SVHC

Packaging :

Bulk

Current Rating :

3A

Option :

GENERAL PURPOSE

Pbfree Code :

yes

IEC Conformance :

No

Depth :

8.15mm

Package / Case :

SIL

Max Current Rating :

3A

Voltage - Rated :

120V

Polarization Key :

POLARIZED HOUSING

JESD-609 Code :

e4

Orientation :

Straight

Number of Positions :

6

MIL Conformance :

No

RoHS Status :

ROHS3 Compliant

Wire Gauge :

24-28 AWG

Contact Material :

Brass

Cable Termination :

Crimp

Fastening Type :

Locking Ramp

Wire Type :

Discrete

Radiation Hardening :

No

Insertion Force-Max :

2.78 N

Rated Current (Signal) :

3A

Min Operating Temperature :

-55°C

Factory Lead Time :

9 Weeks

Total Number of Contacts :

6

Mixed Contacts :

No

Flammability Rating :

UL94 V-0

UL Flammability Code :

94V-0

Max Operating Temperature :

125°C

Additional Feature :

RoHS Compliant

Durability :

500 Cycles

Mount :

Free Hanging

Housing Material :

Polyester

Contact Gender :

FEMALE

Contact Resistance :

25mOhm

Wire Gauge (Max) :

24 AWG

DIN Conformance :

No

Contact Finish :

Gold

Pitch :

0.079 2.00mm

ECCN Code :

EAR99

Published :

2001

Number of Rows :

1

Contact Finish Thickness :

11.8μin 0.30μm

Max Voltage Rating (AC) :

120V

Mounting Type :

Free Hanging (In-Line)

Contact Type :

Female Socket

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

15.15mm

Reference Standard :

UL

Wire Gauge (Min) :

28 AWG

Series :

Datamate L-Tek

Filter Feature :

No

Reliability :

COMMERCIAL
