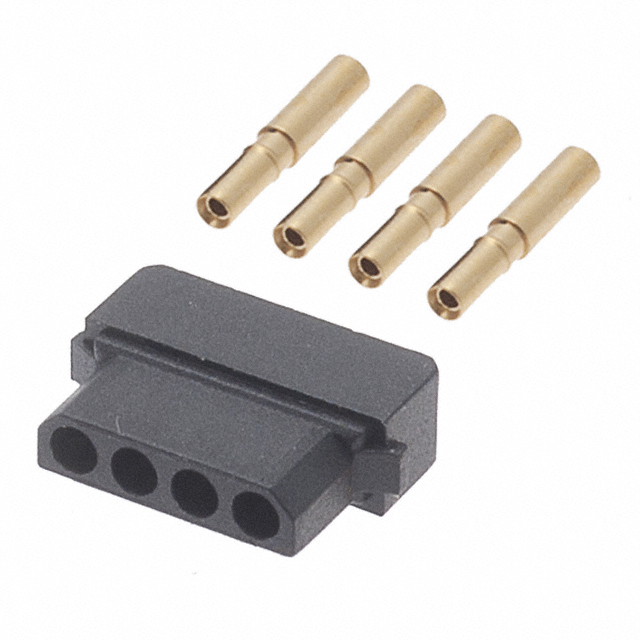

M80-8980405

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Contact Type :

Female Socket

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

4

Color :

Black

Current Rating :

3A

Max Current Rating :

3A

Reliability :

COMMERCIAL

Contact Finish Thickness :

11.8μin 0.30μm

Polarization Key :

POLARIZED HOUSING

Reference Standard :

UL

Option :

GENERAL PURPOSE

Contact Resistance :

25mOhm

Contact Gender :

FEMALE

Published :

2006

Orientation :

Straight

Pitch :

0.079 2.00mm

Durability :

500 Cycles

Wire Type :

Discrete

Total Number of Contacts :

4

Mount :

Free Hanging

DIN Conformance :

No

RoHS Status :

ROHS3 Compliant

Max Operating Temperature :

125°C

IEC Conformance :

No

Min Operating Temperature :

-55°C

Packaging :

Bulk

Contact Material :

Brass

Mounting Type :

Free Hanging (In-Line)

Insertion Force-Max :

2.78 N

Length :

11.15mm

Housing Material :

Polyester

Wire Gauge (Max) :

24 AWG

Wire Gauge (Min) :

28 AWG

Filter Feature :

No

Wire Gauge :

24-28 AWG

Connector Type :

Receptacle

Pbfree Code :

yes

Number of Rows :

1

Depth :

8.15mm

Factory Lead Time :

9 Weeks

Radiation Hardening :

No

Contact Finish :

Gold

Mixed Contacts :

No

Voltage - Rated :

120V

MIL Conformance :

No

REACH SVHC :

No SVHC

Fastening Type :

Locking Ramp

Additional Feature :

RoHS Compliant

Max Voltage Rating (AC) :

120V

Package / Case :

SIL

Series :

Datamate L-Tek

Rated Current (Signal) :

3A

JESD-609 Code :

e4

Cable Termination :

Crimp
