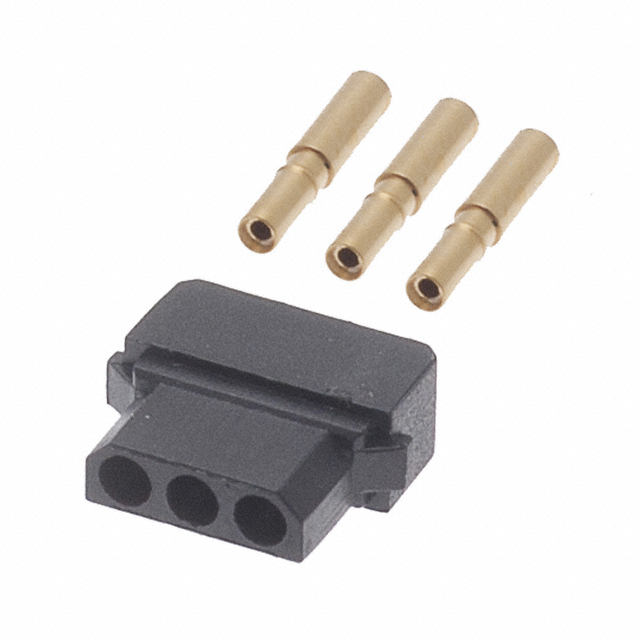

M80-8980305

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Connector Type :

Receptacle

Factory Lead Time :

9 Weeks

Max Voltage Rating (AC) :

120V

Mixed Contacts :

No

IEC Conformance :

No

ECCN Code :

EAR99

Additional Feature :

RoHS Compliant

Contact Type :

Female Socket

Orientation :

Straight

Contact Resistance :

25mOhm

Housing Material :

Polyester

Contact Finish Thickness :

11.8μin 0.30μm

RoHS Status :

ROHS3 Compliant

Insertion Force-Max :

2.78 N

DIN Conformance :

No

Wire Type :

Discrete

JESD-609 Code :

e4

Mount :

Free Hanging

Color :

Black

Wire Gauge :

24-28 AWG

Filter Feature :

No

Reference Standard :

UL

Max Operating Temperature :

125°C

Wire Gauge (Max) :

24 AWG

REACH SVHC :

No SVHC

Length :

9.15mm

MIL Conformance :

No

Voltage - Rated :

120V

Pitch :

0.079 2.00mm

Rated Current (Signal) :

3A

Polarization Key :

POLARIZED HOUSING

Package / Case :

SIL

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Packaging :

Bulk

Wire Gauge (Min) :

28 AWG

UL Flammability Code :

94V-0

Series :

Datamate L-Tek

Current Rating :

3A

Cable Termination :

Crimp

Total Number of Contacts :

3

Depth :

8.15mm

Min Operating Temperature :

-55°C

Contact Material :

Brass

Number of Positions :

3

Contact Finish :

Gold

Durability :

500 Cycles

Number of Rows :

1

Reach Compliance Code :

not_compliant

Reliability :

COMMERCIAL

Contact Gender :

FEMALE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2006

Mounting Type :

Free Hanging (In-Line)

Fastening Type :

Locking Ramp

Max Current Rating :

3A
