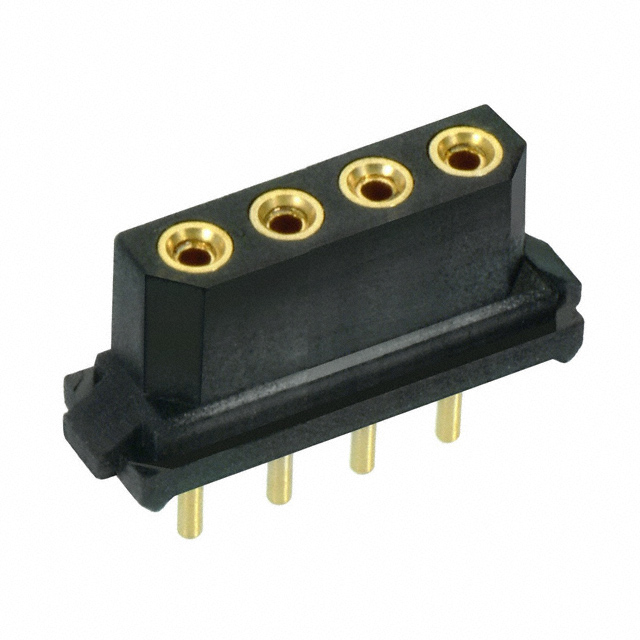

M80-8970405

Manufacturer :

Harwin

Product Category :

Headers, Receptacles, Female Sockets

PCB Contact Pattern :

RECTANGULAR

Stack Height (Mating) :

7.23mm 7.83mm

Max Current Rating :

3A

Contact Gender :

FEMALE

Durability :

500 Cycles

JESD-609 Code :

e4

Factory Lead Time :

12 Weeks

Max Voltage Rating (AC) :

800V

Operating Temperature :

-55°C~125°C

Contact Length - Post :

0.118 3.00mm

Additional Feature :

POLARISED

Insertion Force-Max :

2.78 N

Fastening Type :

Locking Ramp

Contact Finish - Mating :

Gold

Terminal Pitch :

2mm

DIN Conformance :

No

Filter Feature :

No

Contact Type :

Female Socket

Mating Contact Pitch :

0.079 inch

Length :

11.15mm

Material Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Contact Shape :

Circular

Series :

Datamate L-Tek

Packaging :

Tube

Depth :

3.5mm

Mount :

Through Hole

Reliability :

COMMERCIAL

Number Of PCB Rows :

1

Insulation Material :

Polyester, Glass Filled

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Material :

Polyester

Insulation Color :

Black

Number of Conductors :

ONE

Contact Resistance :

20mOhm

Contact Finish Thickness - Mating :

12.0μin 0.30μm

Package / Case :

SIL

Mixed Contacts :

No

RoHS Status :

ROHS3 Compliant

Termination :

Solder

Number of Rows :

1

MIL Conformance :

No

Published :

2012

Orientation :

Straight

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Connector Type :

Receptacle

Reach Compliance Code :

not_compliant

Applications :

Automotive, General Purpose, Military

Reference Standard :

UL

Max Voltage Rating (DC) :

800V

Current Rating :

3A

IEC Conformance :

No

Style :

Board to Board or Cable

Pitch - Mating :

0.079 2.00mm

Mounting Type :

Through Hole

Number of Positions :

4

Pbfree Code :

No

Insulation Height :

0.202 5.14mm

Contact Material :

BERYLLIUM COPPER
