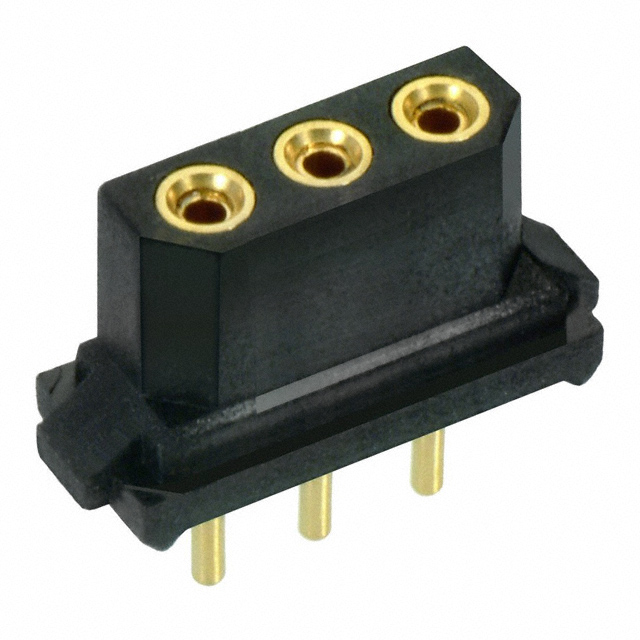

M80-8970305

Manufacturer :

Harwin

Product Category :

Headers, Receptacles, Female Sockets

Contact Material :

BERYLLIUM COPPER

Mating Contact Pitch :

0.079 inch

Published :

2012

Connector Type :

Receptacle

Contact Gender :

FEMALE

IEC Conformance :

No

Stack Height (Mating) :

7.23mm 7.83mm

Contact Finish - Mating :

Gold

Factory Lead Time :

12 Weeks

Insulation Height :

0.202 5.14mm

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating :

3A

Style :

Board to Board or Cable

JESD-609 Code :

e4

Insulation Color :

Black

Number of Positions Loaded :

All

Number of Positions :

3

Reference Standard :

UL

Insulation Material :

Polyester, Glass Filled

MIL Conformance :

No

Housing Material :

Polyester

Insertion Force-Max :

2.78 N

ECCN Code :

EAR99

Series :

Datamate L-Tek

Package / Case :

SIL

Additional Feature :

POLARISED

Length :

9.15mm

Durability :

500 Cycles

Contact Length - Post :

0.118 3.00mm

Number of Conductors :

ONE

UL Flammability Code :

94V-0

Pbfree Code :

No

Number Of PCB Rows :

1

Orientation :

Straight

Depth :

3.5mm

Max Voltage Rating (AC) :

800V

Contact Finish Thickness - Mating :

12.0μin 0.30μm

Fastening Type :

Locking Ramp

Applications :

Automotive, General Purpose, Military

Contact Resistance :

20mOhm

Terminal Pitch :

2mm

Pitch - Mating :

0.079 2.00mm

Mount :

Through Hole

Mounting Type :

Through Hole

RoHS Status :

ROHS3 Compliant

Filter Feature :

No

Max Current Rating :

3A

Reliability :

COMMERCIAL

Number of Rows :

1

Termination :

Solder

DIN Conformance :

No

Contact Shape :

Circular

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mixed Contacts :

No

Operating Temperature :

-55°C~125°C

Reach Compliance Code :

not_compliant

Packaging :

Tube

PCB Contact Pattern :

RECTANGULAR

Contact Type :

Female Socket
