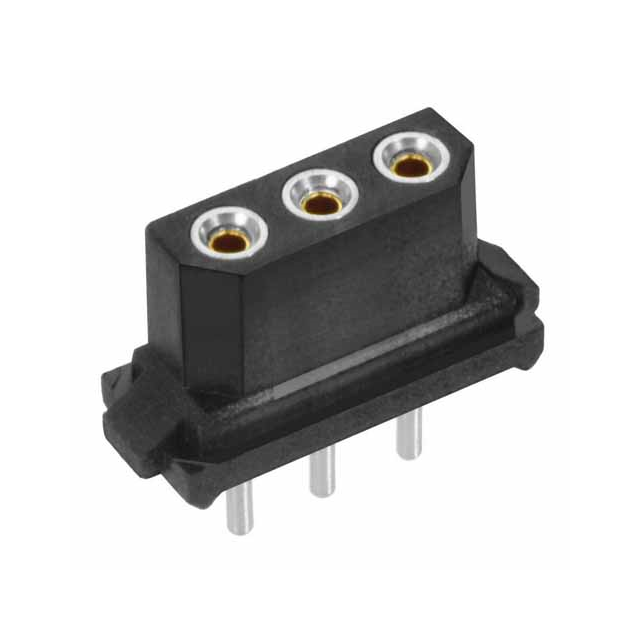

M80-8970301

Manufacturer :

Harwin

Product Category :

Headers, Receptacles, Female Sockets

JESD-609 Code :

e0

Mounting Type :

Through Hole

PCB Contact Pattern :

RECTANGULAR

Reach Compliance Code :

not_compliant

Mixed Contacts :

No

Contact Finish Thickness - Mating :

12.0μin 0.30μm

Contact Length - Post :

0.118 3.00mm

Pitch - Mating :

0.079 2.00mm

Filter Feature :

No

Contact Shape :

Circular

Reference Standard :

UL

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Series :

Datamate L-Tek

Mount :

Through Hole

Contact Gender :

FEMALE

Applications :

Automotive, General Purpose, Military

Stack Height (Mating) :

7.23mm 7.83mm

Style :

Board to Board or Cable

Fastening Type :

Locking Ramp

UL Flammability Code :

94V-0

Number Of PCB Rows :

1

Mating Contact Pitch :

0.079 inch

Material Flammability Rating :

UL94 V-0

Termination :

Solder

Operating Temperature :

-55°C~125°C

Insertion Force-Max :

2.78 N

Number of Conductors :

ONE

MIL Conformance :

No

IEC Conformance :

No

Packaging :

Tube

Insulation Color :

Black

Additional Feature :

POLARISED

RoHS Status :

Non-RoHS Compliant

Durability :

500 Cycles

Insulation Height :

0.202 5.14mm

Insulation Material :

Polyester, Glass Filled

Contact Finish - Mating :

Gold

Body Depth :

0.204 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2012

ECCN Code :

EAR99

Reliability :

COMMERCIAL

Number of Rows :

1

Terminal Pitch :

2mm

Connector Type :

Receptacle

Contact Type :

Female Socket

Voltage - Rated :

800V

Number of Positions :

3

Contact Resistance :

25mOhm

DIN Conformance :

No

Factory Lead Time :

51 Weeks

Package / Case :

SIL

Pbfree Code :

No

Contact Finish - Post :

Tin-Lead

Number of Positions Loaded :

All

Contact Material :

BERYLLIUM COPPER
