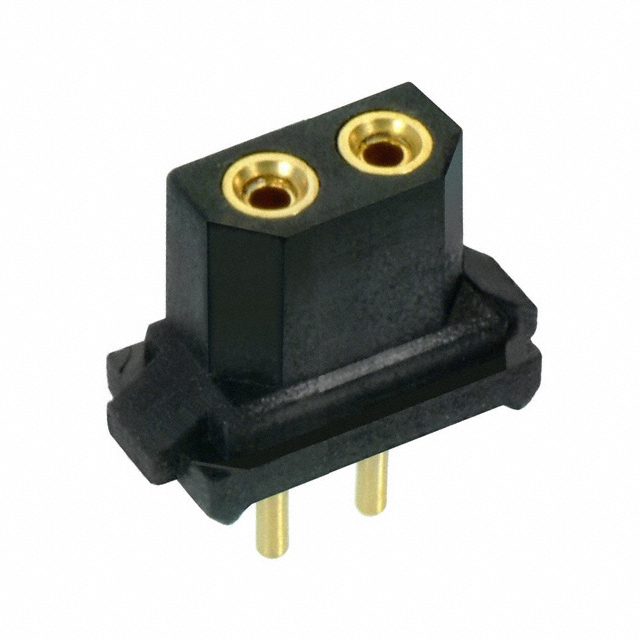

M80-8970205

Manufacturer :

Harwin

Product Category :

Headers, Receptacles, Female Sockets

ECCN Code :

EAR99

RoHS Status :

Non-RoHS Compliant

Stack Height (Mating) :

7.23mm 7.83mm

MIL Conformance :

No

Mixed Contacts :

No

Number Of PCB Rows :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Shape :

Circular

Mount :

Through Hole

Contact Finish Thickness - Mating :

12.0μin 0.30μm

Number of Positions :

2

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

JESD-609 Code :

e4

Insulation Material :

Polyester, Glass Filled

IEC Conformance :

No

Contact Finish - Mating :

Gold

Termination :

Solder

Mounting Type :

Through Hole

Durability :

500 Cycles

Max Voltage Rating (AC) :

800V

Pitch - Mating :

0.079 2.00mm

Factory Lead Time :

13 Weeks

Max Current Rating :

3A

Mating Contact Pitch :

0.079 inch

Reliability :

COMMERCIAL

UL Flammability Code :

94V-0

Published :

2012

Number of Rows :

1

Housing Material :

Polyester

Contact Material :

BERYLLIUM COPPER

Length :

7.15mm

Pbfree Code :

No

Contact Type :

Female Socket

PCB Contact Pattern :

RECTANGULAR

Material Flammability Rating :

UL94 V-0

HTS Code :

8536.69.40.40

Contact Length - Post :

0.118 3.00mm

Package / Case :

SIL

Series :

Datamate L-Tek

Operating Temperature :

-55°C~125°C

Number of Positions Loaded :

All

DIN Conformance :

No

Connector Type :

Receptacle

Current Rating :

3A

Fastening Type :

Locking Ramp

Contact Resistance :

20mOhm

Reference Standard :

UL

Insulation Height :

0.202 5.14mm

Contact Gender :

FEMALE

Radiation Hardening :

No

Style :

Board to Board or Cable

Insulation Color :

Black

Depth :

3.5mm

Filter Feature :

No

Orientation :

Straight

Applications :

Automotive, General Purpose, Military

Additional Feature :

POLARISED

Packaging :

Tube

Number of Conductors :

ONE
