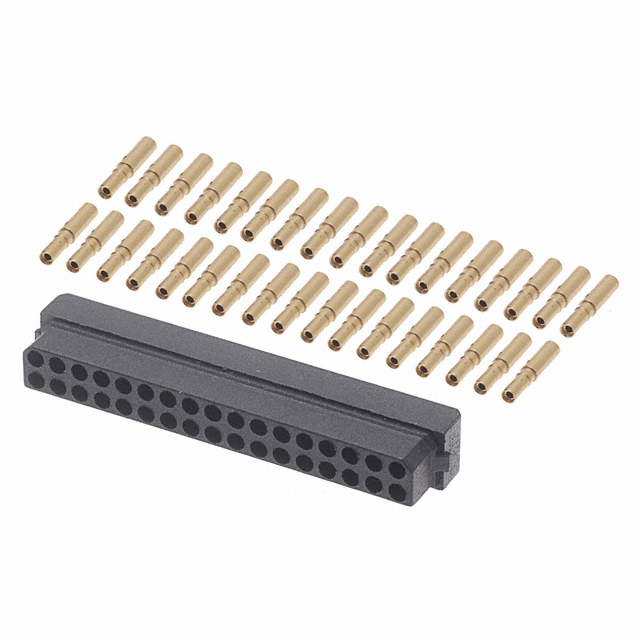

M80-8893405

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Option :

WITH CABLE ASSEMBLY

Max Current Rating :

3A

Contact Gender :

FEMALE

Packaging :

Bulk

HTS Code :

8536.69.40.40

Voltage - Rated DC :

120V

Insulation Resistance :

1000000000Ohm

Current Rating :

3A

Max Operating Temperature :

125°C

Mounting Type :

Free Hanging (In-Line)

MIL Conformance :

No

Series :

Datamate L-Tek

Durability :

500 Cycles

Pbfree Code :

yes

Contact Finish Thickness :

11.8μin 0.30μm

UL Flammability Code :

94V-0

RoHS Status :

ROHS3 Compliant

Reliability :

COMMERCIAL

Row Spacing :

0.079 (2.00mm)

Wire Gauge :

22 AWG

Reference Standard :

UL

Fastening Type :

Locking Ramp

Factory Lead Time :

13 Weeks

Mount :

Free Hanging

Number of Rows :

2

Contact Resistance :

25mOhm

JESD-609 Code :

e4

Color :

Black

REACH SVHC :

No SVHC

Pitch :

0.079 2.00mm

Wire/Cable Gauge :

22 AWG

Mixed Contacts :

No

Cable Termination :

Crimp

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Type :

Receptacle

DIN Conformance :

No

Max Voltage Rating (AC) :

120V

Total Number of Contacts :

34

Contact Finish :

Gold

IEC Conformance :

No

Housing Material :

Polyester

Voltage - Rated :

120V

Depth :

8.15mm

Number of Positions :

34

Orientation :

Straight

Radiation Hardening :

No

Min Operating Temperature :

-55°C

Contact Material :

Brass

Length :

37.15mm

Plating Thickness :

11μin

Filter Feature :

No

Published :

2001

Number of Conductors :

ONE

Flammability Rating :

UL94 V-0

Wire Type :

Discrete

Additional Feature :

RoHS Compliant

Contact Type :

Female Socket

ECCN Code :

EAR99
