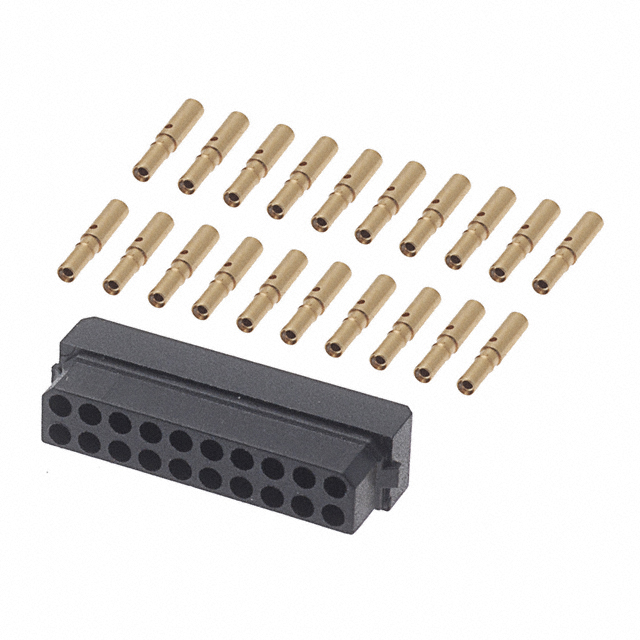

M80-8892005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Row Spacing :

0.079 (2.00mm)

Mounting Type :

Free Hanging (In-Line)

Max Current Rating :

3A

Contact Type :

Female Socket

IEC Conformance :

No

ECCN Code :

EAR99

Wire Gauge :

22 AWG

Packaging :

Bulk

Series :

Datamate L-Tek

JESD-609 Code :

e4

Reference Standard :

UL

Mixed Contacts :

No

Plating Thickness :

11μin

Contact Finish Thickness :

11.8μin 0.30μm

Housing Material :

Polyester

Published :

2001

Number of Rows :

2

REACH SVHC :

No SVHC

Wire Type :

Discrete

Max Voltage Rating (AC) :

120V

Voltage - Rated DC :

120V

Max Operating Temperature :

125°C

Length :

23.15mm

Contact Finish :

Gold

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

Pitch :

0.079 2.00mm

Fastening Type :

Locking Ramp

Color :

Black

Contact Resistance :

25mOhm

Mount :

Free Hanging

Flammability Rating :

UL94 V-0

Total Number of Contacts :

20

Contact Gender :

FEMALE

Factory Lead Time :

9 Weeks

DIN Conformance :

No

HTS Code :

8536.90.40.00

UL Flammability Code :

94V-0

Voltage - Rated :

120V

Number of Positions :

20

Durability :

500 Cycles

Filter Feature :

No

Current Rating :

3A

Insulation Resistance :

1000000000Ohm

MIL Conformance :

No

Min Operating Temperature :

-55°C

Depth :

8.15mm

Radiation Hardening :

No

Connector Type :

Receptacle

Wire/Cable Gauge :

22 AWG

Additional Feature :

RoHS Compliant

RoHS Status :

ROHS3 Compliant

Reliability :

COMMERCIAL

Cable Termination :

Crimp

Orientation :

Straight

Contact Material :

Brass

Pbfree Code :

yes
