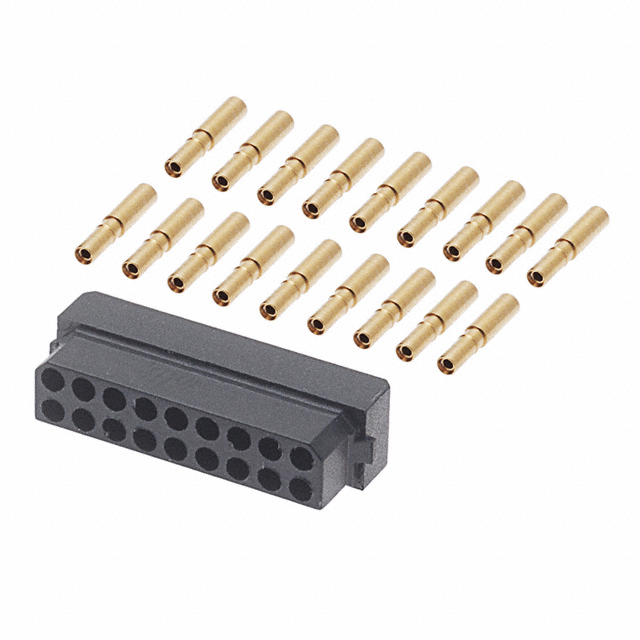

M80-8891805

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Max Current Rating :

3A

Pitch :

0.079 2.00mm

REACH SVHC :

No SVHC

Reference Standard :

UL

Depth :

8.15mm

Insulation Resistance :

1000000000Ohm

Contact Finish Thickness :

11.8μin 0.30μm

Mount :

Free Hanging

Mounting Type :

Free Hanging (In-Line)

Durability :

500 Cycles

Cable Termination :

Crimp

Length :

21.15mm

IEC Conformance :

No

Published :

2001

Option :

GENERAL PURPOSE

Contact Type :

Female Socket

RoHS Status :

ROHS3 Compliant

UL Flammability Code :

94V-0

Contact Finish :

Gold

Pbfree Code :

yes

Housing Material :

Polyester

Max Voltage Rating (AC) :

120V

Current Rating :

3A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Orientation :

Straight

Color :

Black

Contact Resistance :

25mOhm

JESD-609 Code :

e4

Reliability :

COMMERCIAL

Packaging :

Bulk

Total Number of Contacts :

18

Number of Positions :

18

Reach Compliance Code :

not_compliant

Wire Gauge :

22 AWG

Voltage - Rated DC :

120V

Lead Pitch :

2mm

Mixed Contacts :

No

Min Operating Temperature :

-55°C

Max Operating Temperature :

125°C

Contact Material :

Brass

Number of Rows :

2

Working Voltage :

120V

Factory Lead Time :

9 Weeks

Voltage - Rated :

120V

Plating Thickness :

11μin

MIL Conformance :

No

Series :

Datamate L-Tek

Additional Feature :

RoHS Compliant

Row Spacing :

0.079 (2.00mm)

DIN Conformance :

No

ECCN Code :

EAR99

Fastening Type :

Locking Ramp

Wire Type :

Discrete

HTS Code :

8536.69.40.40

Filter Feature :

No

Contact Gender :

FEMALE

Wire/Cable Gauge :

22 AWG

Connector Type :

Receptacle

Flammability Rating :

UL94 V-0
