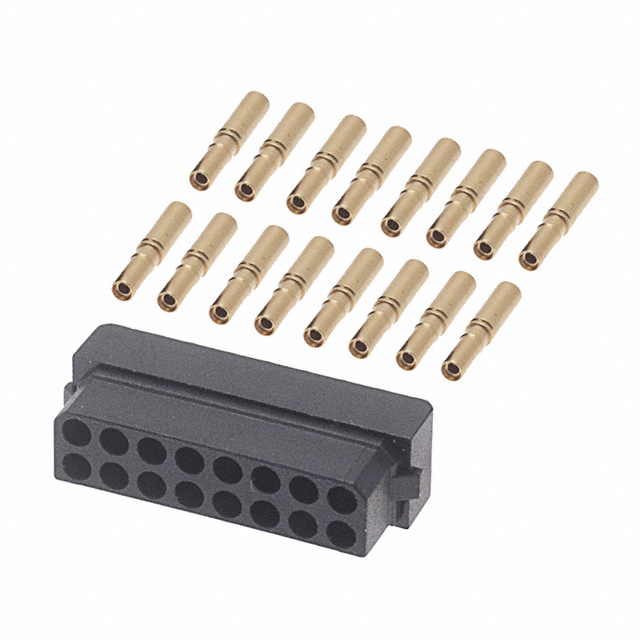

M80-8891605

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

ECCN Code :

EAR99

Contact Resistance :

25mOhm

IEC Conformance :

No

Number of Positions :

16

HTS Code :

8536.69.40.40

Min Operating Temperature :

-55°C

Length :

19.15mm

Contact Finish Thickness :

11.8μin 0.30μm

Number of Rows :

2

Plating Thickness :

11μin

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Total Number of Contacts :

16

Wire Type :

Discrete

Additional Feature :

RoHS Compliant

Max Operating Temperature :

125°C

Durability :

500 Cycles

Wire/Cable Gauge :

22 AWG

Cable Termination :

Crimp

Reference Standard :

UL

Reliability :

COMMERCIAL

Wire Gauge :

22 AWG

Filter Feature :

No

Max Current Rating :

3A

Contact Material :

Brass

Connector Type :

Receptacle

Factory Lead Time :

9 Weeks

Option :

GENERAL PURPOSE

Max Voltage Rating (AC) :

120V

UL Flammability Code :

94V-0

REACH SVHC :

No SVHC

Depth :

8.15mm

Contact Type :

Female Socket

Color :

Black

Housing Material :

Polyester

RoHS Status :

ROHS3 Compliant

DIN Conformance :

No

Mixed Contacts :

No

Contact Finish :

Gold

Fastening Type :

Locking Ramp

Flammability Rating :

UL94 V-0

Voltage - Rated :

120V

Pbfree Code :

yes

JESD-609 Code :

e4

Packaging :

Bulk

Insulation Resistance :

1000000000Ohm

Pitch :

0.079 2.00mm

Radiation Hardening :

No

Voltage - Rated DC :

120V

Series :

Datamate L-Tek

Contact Gender :

FEMALE

Orientation :

Straight

Published :

2001

Mount :

Free Hanging

Mounting Type :

Free Hanging (In-Line)

Row Spacing :

0.079 (2.00mm)

Current Rating :

3A
