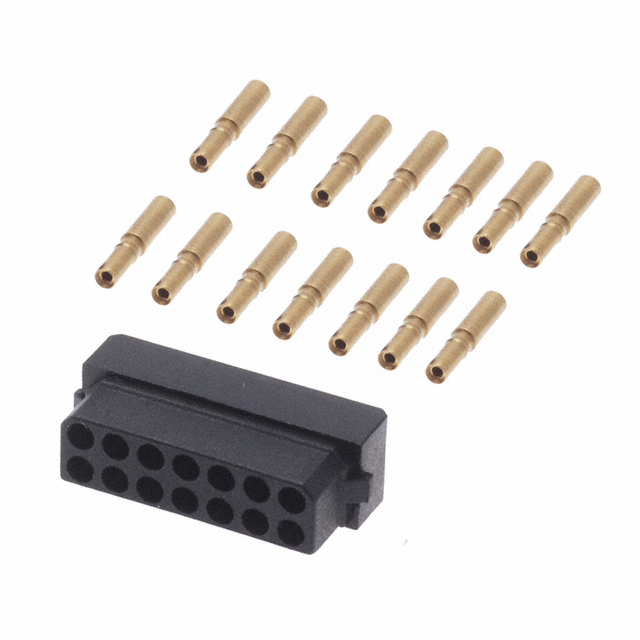

M80-8891405

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Voltage - Rated DC :

120V

Wire Gauge :

22 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Orientation :

Straight

Packaging :

Bulk

Max Operating Temperature :

125°C

Contact Finish :

Gold

Contact Gender :

FEMALE

Mount :

Free Hanging

Published :

2001

REACH SVHC :

No SVHC

RoHS Status :

ROHS3 Compliant

Min Operating Temperature :

-55°C

Reliability :

COMMERCIAL

Max Current Rating :

3A

Housing Material :

Polyester

Option :

GENERAL PURPOSE

UL Flammability Code :

94V-0

Factory Lead Time :

9 Weeks

JESD-609 Code :

e4

Series :

Datamate L-Tek

Number of Rows :

2

Contact Resistance :

25mOhm

Pbfree Code :

yes

Reference Standard :

UL

Reach Compliance Code :

not_compliant

Contact Type :

Female Socket

MIL Conformance :

No

Fastening Type :

Locking Ramp

ECCN Code :

EAR99

Wire Type :

Discrete

Mixed Contacts :

No

Current Rating :

3A

Contact Material :

Brass

IEC Conformance :

No

Length :

17.15mm

Additional Feature :

RoHS Compliant

Row Spacing :

0.079 (2.00mm)

Insulation Resistance :

1000000000Ohm

Durability :

500 Cycles

HTS Code :

8536.90.40.00

Contact Finish Thickness :

11.8μin 0.30μm

Flammability Rating :

UL94 V-0

Mounting Type :

Free Hanging (In-Line)

Color :

Black

Wire/Cable Gauge :

22 AWG

Voltage - Rated :

120V

Total Number of Contacts :

14

Pitch :

0.079 2.00mm

Max Voltage Rating (AC) :

120V

Filter Feature :

No

Depth :

8.15mm

Cable Termination :

Crimp

Connector Type :

Receptacle

DIN Conformance :

No

Number of Positions :

14

Plating Thickness :

11μin
