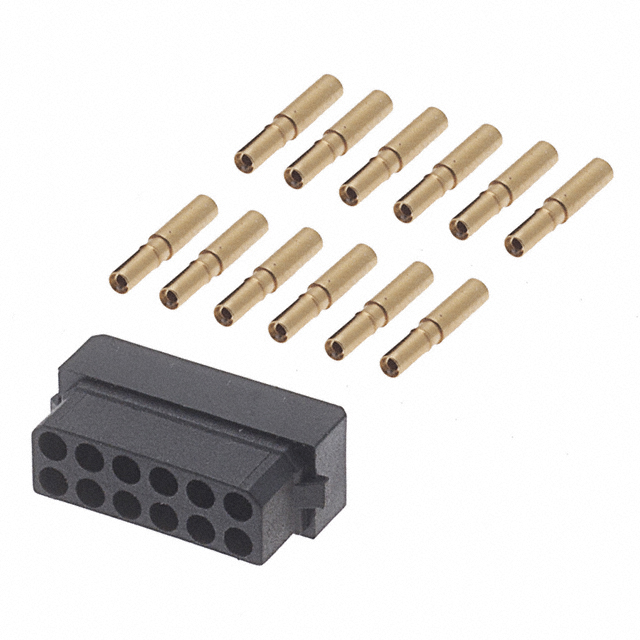

M80-8891205

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Filter Feature :

No

Contact Resistance :

25mOhm

Reference Standard :

UL

Contact Material :

Brass

Option :

GENERAL PURPOSE

Pbfree Code :

yes

Additional Feature :

RoHS Compliant

Contact Gender :

FEMALE

Insulation Resistance :

1000000000Ohm

Wire Type :

Discrete

Factory Lead Time :

9 Weeks

Packaging :

Bulk

REACH SVHC :

No SVHC

Depth :

8.15mm

Mounting Type :

Free Hanging (In-Line)

Current Rating :

3A

Contact Finish :

Gold

Max Operating Temperature :

125°C

Voltage - Rated :

120V

Housing Material :

Polyester

Contact Type :

Female Socket

HTS Code :

8536.69.40.40

Fastening Type :

Locking Ramp

Plating Thickness :

11μin

Mixed Contacts :

No

Min Operating Temperature :

-55°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

No

Wire Gauge :

22 AWG

Mount :

Free Hanging

Reliability :

COMMERCIAL

Voltage - Rated DC :

120V

MIL Conformance :

No

Reach Compliance Code :

not_compliant

Orientation :

Straight

Max Current Rating :

3A

Pitch :

0.079 2.00mm

Number of Positions :

12

Series :

Datamate L-Tek

Connector Type :

Receptacle

Row Spacing :

0.079 (2.00mm)

Wire/Cable Gauge :

22 AWG

Max Voltage Rating (AC) :

120V

Flammability Rating :

UL94 V-0

Length :

15.15mm

Total Number of Contacts :

12

Cable Termination :

Crimp

DIN Conformance :

No

Color :

Black

Number of Rows :

2

UL Flammability Code :

94V-0

Durability :

500 Cycles

RoHS Status :

ROHS3 Compliant

Published :

2001

JESD-609 Code :

e4

ECCN Code :

EAR99

Contact Finish Thickness :

11.8μin 0.30μm
