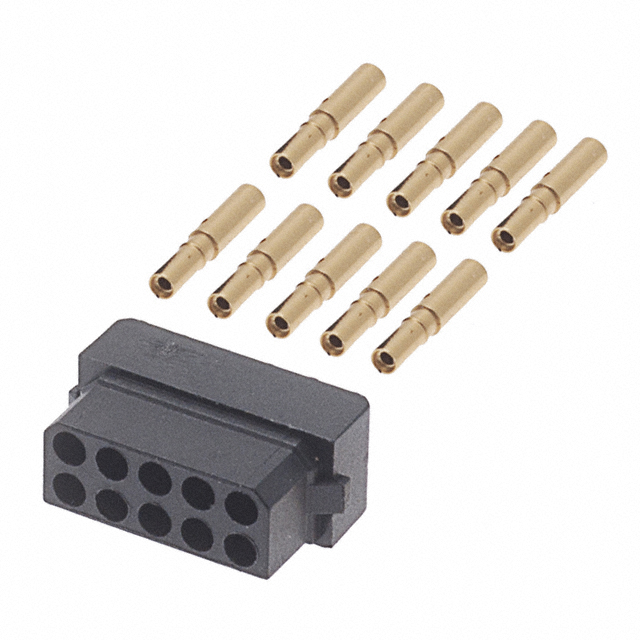

M80-8891005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Published :

2001

Number of Rows :

2

MIL Conformance :

No

Radiation Hardening :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Type :

Discrete

UL Flammability Code :

94V-0

Connector Type :

Receptacle

JESD-609 Code :

e4

Length :

13.15mm

Min Operating Temperature :

-55°C

Pitch :

0.079 2.00mm

Packaging :

Bulk

Wire/Cable Gauge :

22 AWG

DIN Conformance :

No

Max Voltage Rating (AC) :

120V

Filter Feature :

No

Mount :

Free Hanging

Reference Standard :

UL

HTS Code :

8536.69.40.40

Contact Material :

Brass

Plating Thickness :

11μin

Wire Gauge :

22 AWG

Contact Type :

Female Socket

Contact Gender :

FEMALE

Flammability Rating :

UL94 V-0

Pbfree Code :

yes

Row Spacing :

0.079 (2.00mm)

Additional Feature :

RoHS Compliant

Contact Finish :

Gold

Current Rating :

3A

Cable Termination :

Crimp

Color :

Black

Contact Resistance :

25mOhm

Mixed Contacts :

No

REACH SVHC :

No SVHC

Durability :

500 Cycles

Orientation :

Straight

Factory Lead Time :

9 Weeks

Depth :

8.15mm

Housing Material :

Polyester

Max Operating Temperature :

125°C

RoHS Status :

ROHS3 Compliant

Max Current Rating :

3A

Fastening Type :

Locking Ramp

Option :

GENERAL PURPOSE

Contact Finish Thickness :

11.8μin 0.30μm

Series :

Datamate L-Tek

Number of Positions :

10

Total Number of Contacts :

10

ECCN Code :

EAR99

Voltage - Rated :

120V

Mounting Type :

Free Hanging (In-Line)

IEC Conformance :

No

Reliability :

COMMERCIAL
