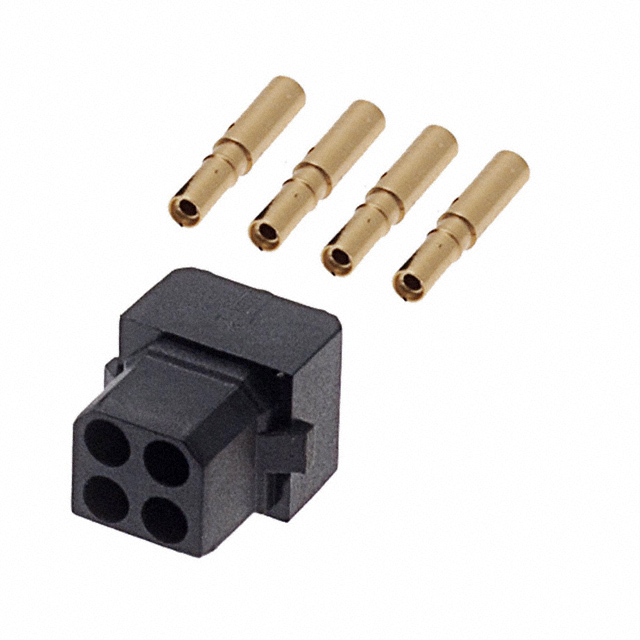

M80-8890405

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Additional Feature :

RoHS Compliant

Max Current Rating :

3A

Current Rating :

3A

Housing Material :

Polyester

Row Spacing :

0.079 (2.00mm)

Wire Gauge :

22 AWG

Max Operating Temperature :

125°C

Reference Standard :

UL

Radiation Hardening :

No

Orientation :

Straight

Fastening Type :

Locking Ramp

Color :

Black

Total Number of Contacts :

4

Published :

2001

Reliability :

COMMERCIAL

DIN Conformance :

No

IEC Conformance :

No

Max Voltage Rating (AC) :

120V

Option :

GENERAL PURPOSE

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mixed Contacts :

No

Insulation Resistance :

1000000000Ohm

Flammability Rating :

UL94 V-0

Contact Type :

Female Socket

Contact Resistance :

25mOhm

Connector Type :

Receptacle

Mount :

Free Hanging

Durability :

500 Cycles

Number of Positions :

4

Plating Thickness :

11μin

Contact Finish Thickness :

11.8μin 0.30μm

ECCN Code :

EAR99

Cable Termination :

Crimp

RoHS Status :

ROHS3 Compliant

REACH SVHC :

No SVHC

Min Operating Temperature :

-55°C

Wire Type :

Discrete

Contact Gender :

FEMALE

Length :

7.15mm

JESD-609 Code :

e4

Mounting Type :

Free Hanging (In-Line)

Pitch :

0.079 2.00mm

Contact Material :

Brass

Depth :

8.15mm

Series :

Datamate L-Tek

Voltage - Rated DC :

120V

Pbfree Code :

yes

Contact Finish :

Gold

Voltage - Rated :

120V

Factory Lead Time :

9 Weeks

Filter Feature :

No

Packaging :

Bulk

Wire/Cable Gauge :

22 AWG

Number of Rows :

2
