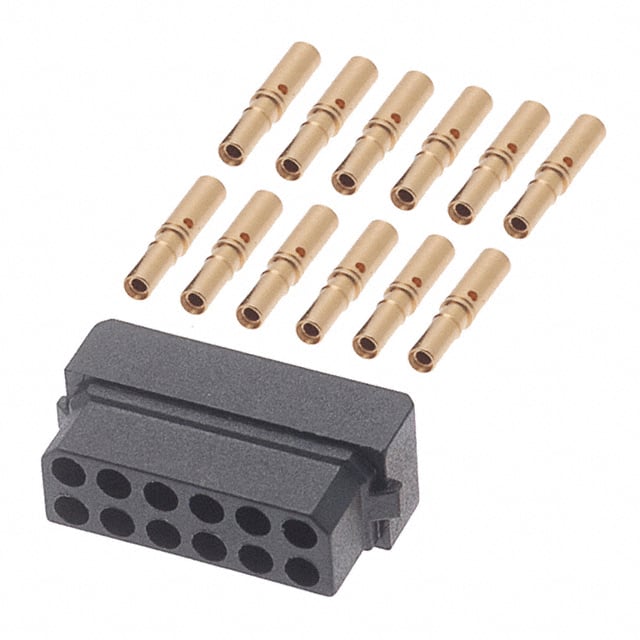

M80-8881205

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Pbfree Code :

yes

Wire Gauge (Max) :

28 AWG

Contact Type :

Female Socket

Orientation :

Straight

Insulation Resistance :

1000000000Ohm

Number of Positions :

12

Contact Gender :

FEMALE

Housing Material :

Polyester

Packaging :

Bulk

Contact Resistance :

25mOhm

Number of Rows :

2

Mounting Type :

Free Hanging (In-Line)

Contact Finish Thickness :

11.8μin 0.30μm

Radiation Hardening :

No

Current Rating :

3A

Reliability :

COMMERCIAL

Pitch :

0.079 2.00mm

UL Flammability Code :

94V-0

DIN Conformance :

No

IEC Conformance :

No

Row Spacing :

0.079 (2.00mm)

Published :

2006

REACH SVHC :

No SVHC

Durability :

500 Cycles

Color :

Black

Max Voltage Rating (AC) :

120V

Option :

GENERAL PURPOSE

Factory Lead Time :

9 Weeks

ECCN Code :

EAR99

Length :

15.15mm

Wire Gauge (Min) :

24 AWG

Mount :

Free Hanging

Mixed Contacts :

No

Fastening Type :

Locking Ramp

Series :

Datamate L-Tek

Max Operating Temperature :

125°C

Wire Gauge :

24-28 AWG

Connector Type :

Receptacle

Reference Standard :

UL

Contact Material :

Brass

Plating Thickness :

11μin

Filter Feature :

No

RoHS Status :

ROHS3 Compliant

Depth :

8.15mm

Max Current Rating :

3A

HTS Code :

8536.90.40.00

JESD-609 Code :

e4

Voltage - Rated :

120V

Total Number of Contacts :

12

Cable Termination :

Crimp

Min Operating Temperature :

-55°C

Wire Type :

Discrete

MIL Conformance :

No

Max Voltage Rating (DC) :

120V

Additional Feature :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish :

Gold
