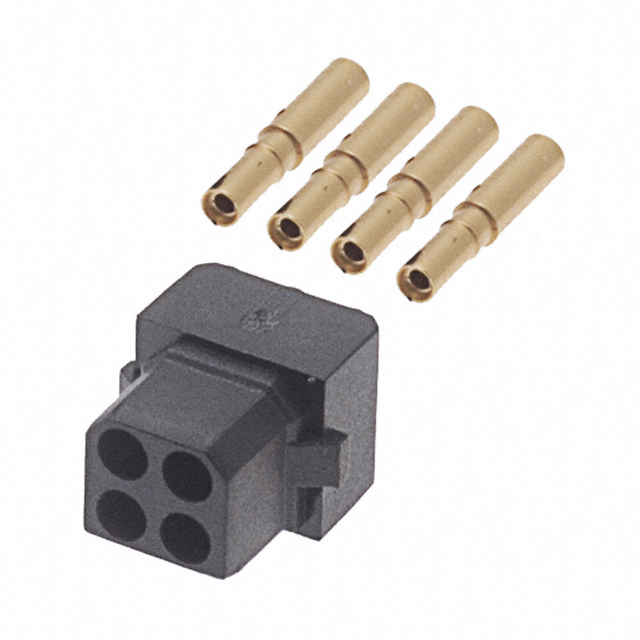

M80-8880405
Or copy the link below:
- Mfr.Part #
- M80-8880405
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 4P CRIMP 24-28AWG GOLD
- Stock
- 19,588
- In Stock ：
- 19,588
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Free Hanging, Panel Mount
- Orientation :
- Straight
- Filter Feature :
- No
- Max Operating Temperature :
- 125°C
- Wire Gauge :
- 24-28 AWG
- Factory Lead Time :
- 9 Weeks
- Housing Material :
- Polyester
- Max Voltage Rating (AC) :
- 120V
- JESD-609 Code :
- e4
- DIN Conformance :
- No
- REACH SVHC :
- No SVHC
- Reference Standard :
- UL
- Pbfree Code :
- yes
- Mixed Contacts :
- No
- Packaging :
- Bulk
- Color :
- Black
- Contact Material :
- Brass
- Depth :
- 8.15mm
- Mounting Type :
- Free Hanging (In-Line)
- Max Current Rating :
- 3A
- Length :
- 7.15mm
- Current Rating :
- 3A
- Reliability :
- COMMERCIAL
- Number of Positions :
- 4
- Series :
- Datamate L-Tek
- Insulation Resistance :
- 1000000000Ohm
- Min Operating Temperature :
- -55°C
- Number of Rows :
- 2
- ECCN Code :
- EAR99
- Radiation Hardening :
- No
- Option :
- GENERAL PURPOSE
- Durability :
- 500 Cycles
- Total Number of Contacts :
- 4
- MIL Conformance :
- No
- Fastening Type :
- Locking Ramp
- RoHS Status :
- ROHS3 Compliant
- Plating Thickness :
- 11μin
- Contact Finish :
- Gold
- Additional Feature :
- RoHS Compliant
- Connector Type :
- Receptacle
- Contact Finish Thickness :
- 11.8μin 0.30μm
- Wire Gauge (Max) :
- 24 AWG
- Voltage - Rated :
- 120V
- Pitch :
- 0.079 2.00mm
- Wire Gauge (Min) :
- 28 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Female Socket
- Row Spacing :
- 0.079 (2.00mm)
- Published :
- 2010
- IEC Conformance :
- No
- Cable Termination :
- Crimp
- Contact Gender :
- FEMALE
- Wire Type :
- Discrete
- Mount :
- Free Hanging
- Contact Resistance :
- 25mOhm
- Datasheets
- M80-8880405
M80-8880405 Documents
M80-8880405 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from Harwin Inc. stock available at Xinshop
Features of the Harwin Rectangular Connectors - Free Hanging, Panel Mount M80-8880405 include:
• 4-pin crimp design for use with 24-28 AWG wires
• Gold-plated contacts for superior electrical performance and reliable connections
• Low profile design for easy installation
• Durable construction for long-term reliability
• RoHS compliant
The Harwin Rectangular Connectors - Free Hanging, Panel Mount M80-8880405 are suitable for a variety of applications, including industrial, automotive, and consumer electronics. They are ideal for use in applications where space is limited, such as in tight spaces or in confined areas. They are also suitable for use in applications where high-speed data transmission is required, such as in automotive and industrial applications.
