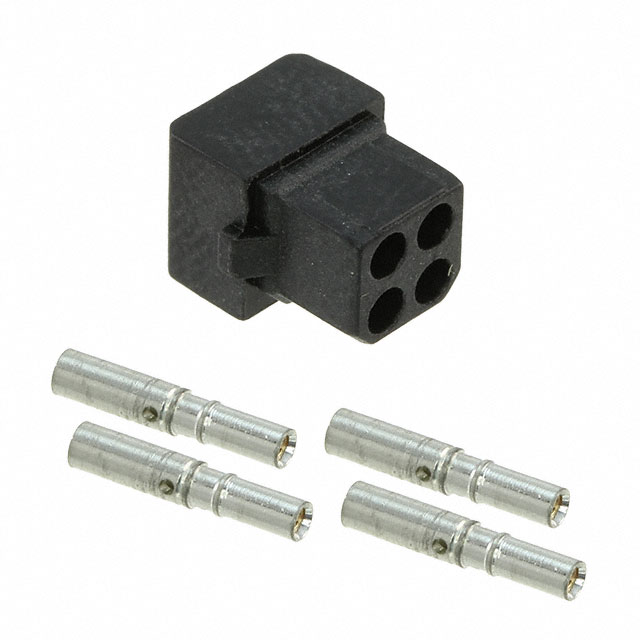

M80-8880401

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Series :

Datamate L-Tek

Row Spacing :

0.079 (2.00mm)

Mount :

Free Hanging

Filter Feature :

No

IEC Conformance :

No

Cable Termination :

Crimp

Wire Type :

Discrete

Connector Type :

Receptacle

Wire Gauge (Min) :

24 AWG

Fastening Type :

Locking Ramp

MIL Conformance :

No

Mixed Contacts :

No

Mounting Type :

Free Hanging (In-Line)

Reference Standard :

UL

Total Number of Contacts :

4

Operating Temperature (Min) :

-55°C

Packaging :

Bulk

Reach Compliance Code :

not_compliant

ECCN Code :

EAR99

Number of Rows :

2

Plating Thickness :

11μin

Insulation Material :

GLASS FILLED POLYESTER

Pitch :

0.079 2.00mm

Color :

Black

Factory Lead Time :

9 Weeks

Durability :

500 Cycles

Published :

2011

Wire Gauge :

24-28 AWG

Contact Material :

BERYLLIUM COPPER

Contact Type :

Female Socket

Additional Feature :

RoHS Compliant

Reliability :

COMMERCIAL

JESD-609 Code :

e3

Number of Positions :

4

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge (Max) :

28 AWG

Contact Finish Thickness :

11.8μin 0.30μm

Insulation Resistance :

1000000000Ohm

Contact Finish :

Gold

DIN Conformance :

No

RoHS Status :

ROHS3 Compliant

Option :

GENERAL PURPOSE
