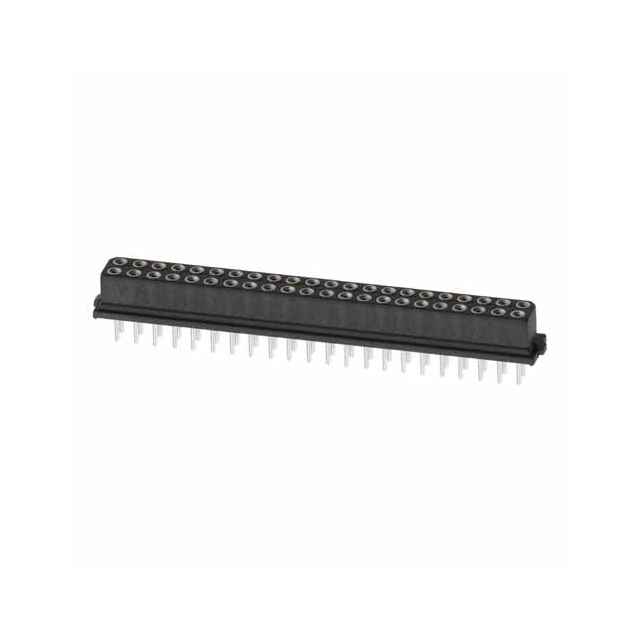

M80-8874401

Manufacturer :

Harwin

Product Category :

Headers, Receptacles, Female Sockets

Stack Height (Mating) :

7.23mm 7.85mm

Contact Length - Post :

0.118 3.00mm

Plating Thickness :

11μin

Number of Positions :

4

Applications :

Automotive, General Purpose, Military

Mounting Type :

Through Hole

Contact Plating :

Gold, Tin

Mount :

Through Hole

ECCN Code :

EAR99

Insulation Resistance :

100000000Ohm

Row Spacing - Mating :

0.079 (2.00mm)

Insulation Color :

Black

RoHS Status :

Non-RoHS Compliant

Contact Shape :

Circular

Contact Type :

Female Socket

Packaging :

Tube

PCB Contact Pattern :

RECTANGULAR

Contact Finish - Post :

Tin-Lead

Number of Positions Loaded :

All

MIL Conformance :

No

Reach Compliance Code :

not_compliant

Mixed Contacts :

No

Insulation Material :

Polyester, Glass Filled

Termination :

Solder

Pitch - Mating :

0.079 2.00mm

Connector Type :

Receptacle

Body Length or Diameter :

1.856 inch

Number of Rows :

2

Number of Conductors :

ONE

Contact Finish Thickness - Post :

137.8μin 3.50μm

Contact Material :

BERYLLIUM COPPER

Number Of PCB Rows :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reference Standard :

UL

Contact Gender :

FEMALE

Filter Feature :

No

Contact Finish - Mating :

Gold

JESD-609 Code :

e0

Reliability :

COMMERCIAL

Series :

Datamate L-Tek

Operating Temperature :

-55°C~125°C

Material Flammability Rating :

UL94 V-0

IEC Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Insulation Height :

0.202 5.14mm

Style :

Board to Board or Cable

Additional Feature :

POLARISED

Pbfree Code :

No

Durability :

500 Cycles

Contact Finish Thickness - Mating :

12.0μin 0.30μm

Published :

2012

Fastening Type :

Locking Ramp

Factory Lead Time :

13 Weeks

Voltage - Rated :

800V

Mating Contact Pitch :

0.079 inch

DIN Conformance :

No

Length - Termination :

0.118 inch
