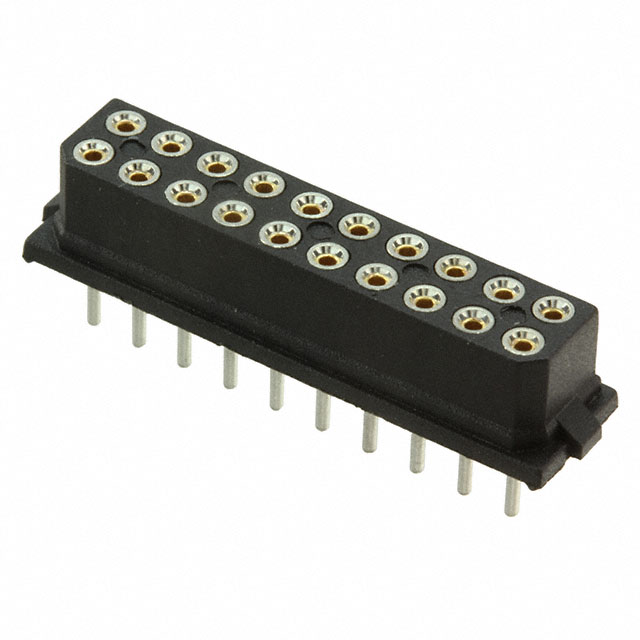

M80-8872001
Or copy the link below:
- Mfr.Part #
- M80-8872001
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 20POS 0.079 GOLD PCB
- Stock
- 42
- In Stock ：
- 42
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Receptacles, Female Sockets
- Published :
- 2009
- Pitch - Mating :
- 0.079 2.00mm
- Contact Length - Post :
- 0.118 3.00mm
- Factory Lead Time :
- 12 Weeks
- Durability :
- 500 Cycles
- Connector Type :
- Receptacle
- Voltage - Rated :
- 800V
- Mount :
- Through Hole
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 137.8μin 3.50μm
- Mixed Contacts :
- No
- Contact Finish Thickness - Mating :
- 12.0μin 0.30μm
- Number of Positions Loaded :
- All
- PCB Contact Pattern :
- RECTANGULAR
- Length :
- 23.15mm
- Packaging :
- Tube
- Number of Positions :
- 20
- Orientation :
- Straight
- Series :
- Datamate L-Tek
- Operating Temperature :
- -55°C~125°C
- Reference Standard :
- UL
- JESD-609 Code :
- e0
- HTS Code :
- 8536.69.40.40
- Fastening Type :
- Locking Ramp
- RoHS Status :
- Non-RoHS Compliant
- Contact Gender :
- FEMALE
- Pbfree Code :
- No
- Filter Feature :
- No
- Contact Shape :
- Circular
- Max Voltage Rating (AC) :
- 120V
- MIL Conformance :
- No
- Plating Thickness :
- 11μin
- Termination :
- Solder
- Contact Material :
- BERYLLIUM COPPER
- Insulation Color :
- Black
- Style :
- Board to Board or Cable
- Number Of PCB Rows :
- 2
- Applications :
- Automotive, General Purpose, Military
- UL Flammability Code :
- 94V-0
- Contact Type :
- Female Socket
- Depth :
- 5.45mm
- DIN Conformance :
- No
- Stack Height (Mating) :
- 7.23mm 7.85mm
- Mating Contact Pitch :
- 0.079 inch
- Insulation Material :
- Polyester, Glass Filled
- Contact Resistance :
- 25mOhm
- Insulation Resistance :
- 100000000Ohm
- Number of Conductors :
- ONE
- Withdrawl Force-Min :
- .1946 N
- Mounting Type :
- Through Hole
- Contact Finish - Mating :
- Gold
- Reliability :
- COMMERCIAL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Current Rating :
- 3A
- Number of Rows :
- 2
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Reach Compliance Code :
- not_compliant
- ECCN Code :
- EAR99
- IEC Conformance :
- No
- Housing Material :
- Polyester
- Contact Finish - Post :
- Tin-Lead
- Additional Feature :
- POLARISED
- Insulation Height :
- 0.202 5.14mm
- Datasheets
- M80-8872001
M80-8872001 Documents
2 Rows Receptacle Solder Beryllium Copper Through Hole Tube Gold Polyester, Glass Filled 20 Positions Female Socket
M80-8872001 Overview
The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Tube case is necessary to package the product.There is a product in the Datamate L-Tek Series.To name a few, there is also POLARISED.The device could be used for the following application: Automotive, General Purpose, Military.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~125°C Operating Temperature.
M80-8872001 Features
Datamate L-Tek series
