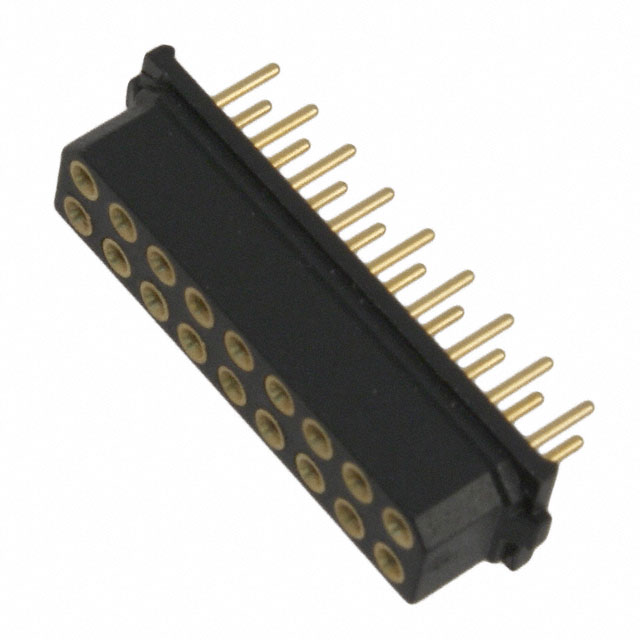

M80-8871805
Or copy the link below:
- Mfr.Part #
- M80-8871805
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 18POS 0.079 GOLD PCB
- Stock
- 29,296
- In Stock ：
- 29,296
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Receptacles, Female Sockets
- Termination :
- Solder
- Pbfree Code :
- No
- Length :
- 21.15mm
- UL Flammability Code :
- 94V-0
- Withdrawl Force-Min :
- .1946 N
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Mating :
- 12.0μin 0.30μm
- Packaging :
- Tube
- Additional Feature :
- POLARISED
- Max Voltage Rating (AC) :
- 120V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Gender :
- FEMALE
- Depth :
- 5.45mm
- Insulation Color :
- Black
- Number of Positions :
- 18
- Number of Rows :
- 2
- Durability :
- 500 Cycles
- Current Rating :
- 3A
- Mounting Type :
- Through Hole
- HTS Code :
- 8536.69.40.40
- ECCN Code :
- EAR99
- Style :
- Board to Board or Cable
- Factory Lead Time :
- 13 Weeks
- RoHS Status :
- ROHS3 Compliant
- Series :
- Datamate L-Tek
- Insulation Material :
- Polyester, Glass Filled
- Insulation Height :
- 0.202 5.14mm
- PCB Contact Pattern :
- RECTANGULAR
- Applications :
- Automotive, General Purpose, Military
- Pitch - Mating :
- 0.079 2.00mm
- MIL Conformance :
- No
- Row Spacing - Mating :
- 0.079 (2.00mm)
- DIN Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Max Current Rating :
- 3A
- IEC Conformance :
- No
- Housing Material :
- Polyester
- Published :
- 2009
- Contact Length - Post :
- 0.118 3.00mm
- Number Of PCB Rows :
- 2
- Filter Feature :
- No
- Mating Contact Pitch :
- 0.079 inch
- JESD-609 Code :
- e4
- Insulation Resistance :
- 100000000Ohm
- Reliability :
- COMMERCIAL
- Contact Type :
- Female Socket
- Contact Material :
- BERYLLIUM COPPER
- Fastening Type :
- Locking Ramp
- Operating Temperature :
- -55°C~125°C
- Orientation :
- Straight
- Number of Conductors :
- ONE
- Mixed Contacts :
- No
- Contact Finish Thickness - Post :
- 10.0μin 0.25μm
- Number of Positions Loaded :
- All
- Contact Resistance :
- 25mOhm
- Connector Type :
- Receptacle
- Reference Standard :
- UL
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Plating Thickness :
- 11μin
- Contact Shape :
- Circular
- Voltage - Rated :
- 800V
- Mount :
- Through Hole
- Stack Height (Mating) :
- 7.23mm 7.85mm
- Radiation Hardening :
- No
- Datasheets
- M80-8871805
M80-8871805 Documents
2 Rows Receptacle Solder Beryllium Copper Through Hole Tube Gold Polyester, Glass Filled 18 Positions Female Socket
M80-8871805 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the Datamate L-Tek Series.Other features include POLARISED, to name just a few.There are a variety of possible applications for this device, including Automotive, General Purpose, Military.There is a mounting hole at Through Hole.Devices operate at -55°C~125°C operating temperatures.
M80-8871805 Features
Datamate L-Tek series
M80-8871805 Applications
There are a lot of Harwin Inc.
M80-8871805 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
