M80-8871801
Or copy the link below:
- Mfr.Part #
- M80-8871801
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 18POS 0.079 GOLD PCB
- Stock
- 24
- In Stock ：
- 24
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Receptacles, Female Sockets
- Operating Temperature :
- -55°C~125°C
- HTS Code :
- 8536.69.40.40
- Termination :
- Solder
- Insulation Height :
- 0.202 5.14mm
- Reference Standard :
- UL
- Contact Finish - Mating :
- Gold
- Plating Thickness :
- 11μin
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Mating Contact Pitch :
- 0.079 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Post :
- 137.8μin 3.50μm
- Contact Shape :
- Circular
- Durability :
- 500 Cycles
- PCB Contact Pattern :
- RECTANGULAR
- Insulation Resistance :
- 100000000Ohm
- ECCN Code :
- EAR99
- Contact Gender :
- FEMALE
- Contact Material :
- BERYLLIUM COPPER
- DIN Conformance :
- No
- Contact Plating :
- Gold, Tin
- Length :
- 21.15mm
- UL Flammability Code :
- 94V-0
- Depth :
- 5.45mm
- Fastening Type :
- Locking Ramp
- Pitch - Mating :
- 0.079 2.00mm
- Connector Type :
- Receptacle
- Packaging :
- Tube
- MIL Conformance :
- No
- Reach Compliance Code :
- not_compliant
- Contact Length - Post :
- 0.118 3.00mm
- Reliability :
- COMMERCIAL
- Filter Feature :
- No
- Insulation Color :
- Black
- Stack Height (Mating) :
- 7.23mm 7.85mm
- Max Current Rating :
- 3A
- Number of Conductors :
- ONE
- IEC Conformance :
- No
- Contact Finish - Post :
- Tin-Lead
- Published :
- 2012
- Contact Type :
- Female Socket
- Mixed Contacts :
- No
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Withdrawl Force-Min :
- .1946 N
- Factory Lead Time :
- 13 Weeks
- Pbfree Code :
- No
- Max Voltage Rating (AC) :
- 120V
- Number of Positions Loaded :
- All
- RoHS Status :
- Non-RoHS Compliant
- Contact Resistance :
- 25mOhm
- Series :
- Datamate L-Tek
- Style :
- Board to Board or Cable
- Mount :
- Through Hole
- JESD-609 Code :
- e0
- Number Of PCB Rows :
- 2
- Applications :
- Automotive, General Purpose, Military
- Voltage - Rated :
- 800V
- Number of Rows :
- 2
- Orientation :
- Straight
- Housing Material :
- Polyester
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Insulation Material :
- Polyester, Glass Filled
- Number of Positions :
- 18
- Contact Finish Thickness - Mating :
- 12.0μin 0.30μm
- Additional Feature :
- POLARISED
- Datasheets
- M80-8871801

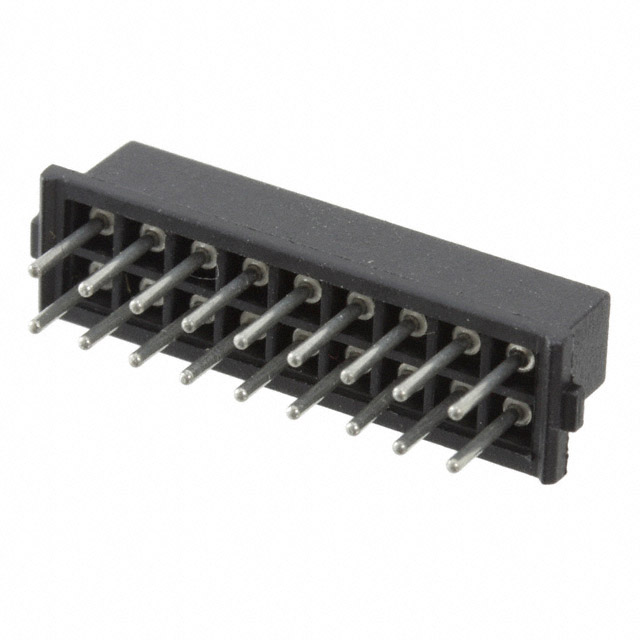

2 Rows Receptacle Solder Beryllium Copper Through Hole Tube Gold Polyester, Glass Filled 18 Positions Female Socket
M80-8871801 Overview
A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tube case.It is part of the Datamate L-Tek Series of products.Additionally, there are other features, such as POLARISED.It is possible for the device to be used for the application Automotive, General Purpose, Military.Through Hole mounts the part.There is no operating temperature for the device.
