M80-8871601
Or copy the link below:
- Mfr.Part #
- M80-8871601
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 16POS 0.079 GOLD PCB
- Stock
- 32,424
- In Stock ：
- 32,424
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Receptacles, Female Sockets
- Insulation Color :
- Black
- Contact Resistance :
- 25mOhm
- Additional Feature :
- POLARISED
- Contact Plating :
- Gold, Tin
- Number of Positions :
- 16
- Plating Thickness :
- 11μin
- Published :
- 2012
- Contact Finish - Mating :
- Gold
- PCB Contact Pattern :
- RECTANGULAR
- Contact Type :
- Female Socket
- Voltage - Rated :
- 800V
- Number Of PCB Rows :
- 2
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Length :
- 19.15mm
- Contact Gender :
- FEMALE
- Pitch - Mating :
- 0.079 2.00mm
- DIN Conformance :
- No
- UL Flammability Code :
- 94V-0
- Number of Conductors :
- ONE
- RoHS Status :
- Non-RoHS Compliant
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Applications :
- Automotive, General Purpose, Military
- Mount :
- Through Hole
- Factory Lead Time :
- 12 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Post :
- Tin-Lead
- Orientation :
- Straight
- Insulation Material :
- Polyester, Glass Filled
- Mixed Contacts :
- No
- MIL Conformance :
- No
- Contact Finish Thickness - Post :
- 137.8μin 3.50μm
- Connector Type :
- Receptacle
- Style :
- Board to Board or Cable
- Series :
- Datamate L-Tek
- Stack Height (Mating) :
- 7.23mm 7.85mm
- Contact Finish Thickness - Mating :
- 12.0μin 0.30μm
- IEC Conformance :
- No
- Contact Shape :
- Circular
- Depth :
- 5.45mm
- Operating Temperature :
- -55°C~125°C
- Contact Material :
- BERYLLIUM COPPER
- Mating Contact Pitch :
- 0.079 inch
- JESD-609 Code :
- e0
- Durability :
- 500 Cycles
- Fastening Type :
- Locking Ramp
- Insulation Resistance :
- 100000000Ohm
- Housing Material :
- Polyester
- Packaging :
- Tube
- Pbfree Code :
- No
- Reference Standard :
- UL
- ECCN Code :
- EAR99
- Contact Length - Post :
- 0.118 3.00mm
- Withdrawl Force-Min :
- .1946 N
- HTS Code :
- 8536.69.40.40
- Reach Compliance Code :
- not_compliant
- Material Flammability Rating :
- UL94 V-0
- Filter Feature :
- No
- Max Voltage Rating (AC) :
- 120V
- Termination :
- Solder
- Number of Rows :
- 2
- Insulation Height :
- 0.202 5.14mm
- Number of Positions Loaded :
- All
- Max Current Rating :
- 3A
- Mounting Type :
- Through Hole
- Reliability :
- COMMERCIAL
- Datasheets
- M80-8871601

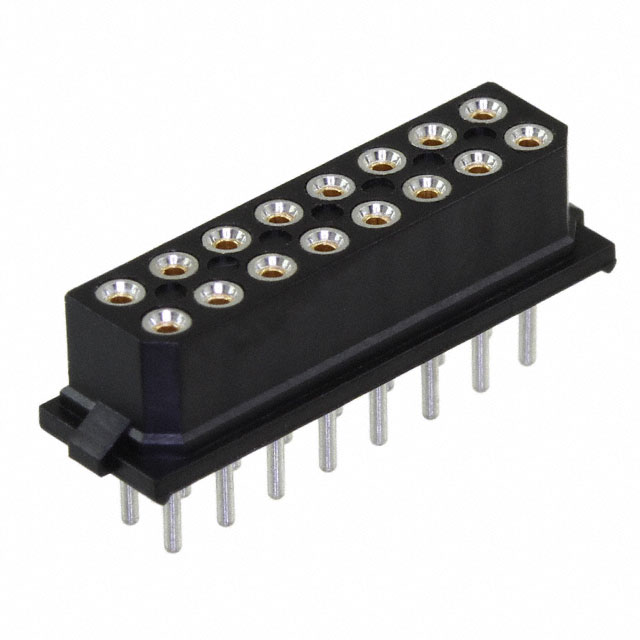

2 Rows Receptacle Solder Beryllium Copper Through Hole Tube Gold Polyester, Glass Filled 16 Positions Female Socket
M80-8871601 Overview
The packaging contains Receptacle.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tube.Product number Datamate L-Tek belongs to the Datamate L-Tek Series.Further, there are features such as POLARISED, to name only a few.In addition to Automotive, General Purpose, Military, there are other possible applications for the device.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~125°C.
M80-8871601 Features
Datamate L-Tek series
M80-8871601 Applications
There are a lot of Harwin Inc.
M80-8871601 Rectangular Connectors applications.
