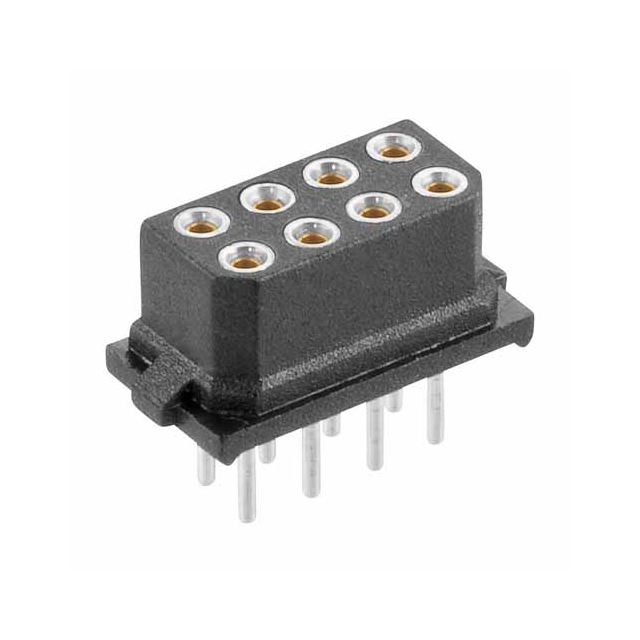

M80-8870801

Manufacturer :

Harwin

Product Category :

Headers, Receptacles, Female Sockets

Mating Contact Pitch :

0.079 inch

Contact Gender :

FEMALE

Contact Length - Post :

0.118 3.00mm

Contact Finish - Mating :

Gold

DIN Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mounting Type :

Through Hole

Contact Shape :

Circular

PCB Contact Pattern :

RECTANGULAR

Packaging :

Tube

IEC Conformance :

No

Connector Type :

Receptacle

Pbfree Code :

No

Stack Height (Mating) :

7.23mm 7.85mm

Row Spacing - Mating :

0.079 (2.00mm)

Reference Standard :

UL

Mount :

Through Hole

Termination :

Solder

Mixed Contacts :

No

Voltage - Rated :

800V

Contact Type :

Female Socket

Contact Finish - Post :

Tin-Lead

Material Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

Insulation Color :

Black

Pitch - Mating :

0.079 2.00mm

Number of Positions Loaded :

All

Additional Feature :

POLARISED

Number Of PCB Rows :

2

UL Flammability Code :

94V-0

REACH SVHC :

No SVHC

Filter Feature :

No

Operating Temperature :

-55°C~125°C

Contact Material :

BERYLLIUM COPPER

Insulation Resistance :

100000000Ohm

Withdrawl Force-Min :

.1946 N

ECCN Code :

EAR99

Durability :

500 Cycles

Series :

Datamate L-Tek

Fastening Type :

Locking Ramp

Applications :

Automotive, General Purpose, Military

Number of Rows :

2

Number of Positions :

8

RoHS Status :

Non-RoHS Compliant

MIL Conformance :

No

JESD-609 Code :

e0

Published :

2009

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Factory Lead Time :

13 Weeks

Insulation Material :

Polyester, Glass Filled

Contact Finish Thickness - Mating :

12.0μin 0.30μm

Style :

Board to Board or Cable

Insulation Height :

0.202 5.14mm

Contact Finish Thickness - Post :

137.8μin 3.50μm

Reliability :

COMMERCIAL

Reach Compliance Code :

not_compliant

Body Length or Diameter :

0.439 inch

Plating Thickness :

11μin
