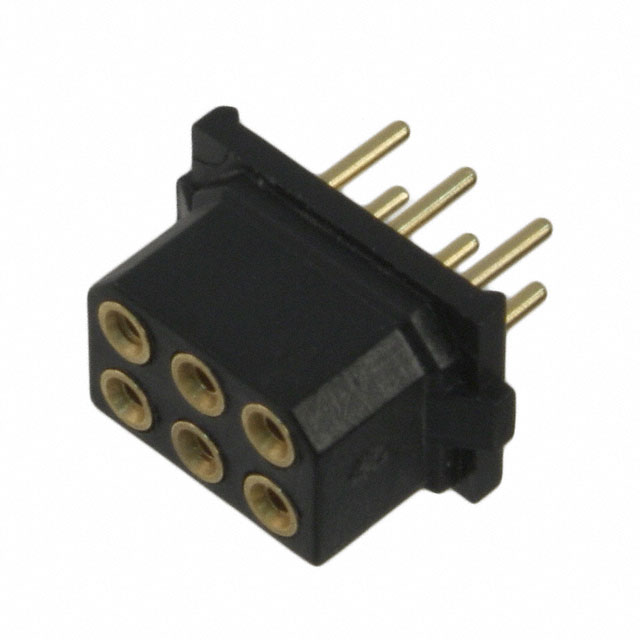

M80-8870605

Manufacturer :

Harwin

Product Category :

Headers, Receptacles, Female Sockets

Contact Finish Thickness - Post :

10.0μin 0.25μm

Row Spacing - Mating :

0.079 (2.00mm)

Depth :

5.45mm

Termination :

Solder

Mixed Contacts :

No

Max Current Rating :

3A

Operating Temperature :

-55°C~125°C

Contact Type :

Female Socket

Number of Positions Loaded :

All

PCB Contact Pattern :

RECTANGULAR

Voltage - Rated :

800V

REACH SVHC :

No SVHC

Mounting Type :

Through Hole

Number Of PCB Rows :

2

Current Rating :

3A

Insulation Color :

Black

Contact Finish Thickness - Mating :

12.0μin 0.30μm

Packaging :

Tube

Contact Finish - Mating :

Gold

Orientation :

Straight

Durability :

500 Cycles

Plating Thickness :

11μin

JESD-609 Code :

e4

Additional Feature :

POLARISED

Number of Positions :

6

Contact Material :

BERYLLIUM COPPER

Material Flammability Rating :

UL94 V-0

Contact Length - Post :

0.118 3.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

No

RoHS Status :

ROHS3 Compliant

Series :

Datamate L-Tek

Style :

Board to Board or Cable

Max Voltage Rating (AC) :

120V

Radiation Hardening :

No

IEC Conformance :

No

Applications :

Automotive, General Purpose, Military

Pitch - Mating :

0.079 2.00mm

Contact Resistance :

25mOhm

Housing Material :

Polyester

Reference Standard :

UL

Insulation Height :

0.202 5.14mm

Factory Lead Time :

12 Weeks

Number of Conductors :

ONE

Filter Feature :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Reliability :

COMMERCIAL

Stack Height (Mating) :

7.23mm 7.85mm

Insulation Resistance :

100000000Ohm

DIN Conformance :

No

Length :

9.15mm

Mount :

Through Hole

Contact Gender :

FEMALE

Connector Type :

Receptacle

Number of Rows :

2

Mating Contact Pitch :

0.079 inch

Insulation Material :

Polyester, Glass Filled

Fastening Type :

Locking Ramp

MIL Conformance :

No

Contact Shape :

Circular

UL Flammability Code :

94V-0

Published :

2011
