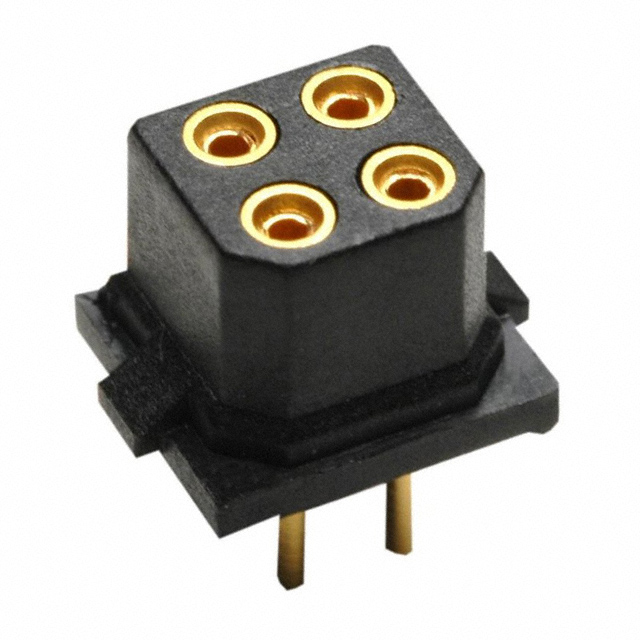

M80-8870405

Manufacturer :

Harwin

Product Category :

Headers, Receptacles, Female Sockets

Durability :

500 Cycles

Contact Finish - Mating :

Gold

Operating Temperature :

-55°C~125°C

Contact Length - Post :

0.118 3.00mm

Packaging :

Tube

Mount :

Through Hole

Insulation Height :

0.202 5.14mm

Number of Positions :

4

Row Spacing - Mating :

0.079 (2.00mm)

Connector Type :

Receptacle

Housing Material :

Polyester

Fastening Type :

Locking Ramp

MIL Conformance :

No

Radiation Hardening :

No

Insulation Color :

Black

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

JESD-609 Code :

e4

PCB Contact Pattern :

RECTANGULAR

Published :

2011

Insulation Resistance :

100000000Ohm

Number of Conductors :

ONE

Termination :

Solder

DIN Conformance :

No

Filter Feature :

No

Contact Type :

Female Socket

Style :

Board to Board or Cable

IEC Conformance :

No

Orientation :

Straight

Depth :

5.45mm

Contact Finish Thickness - Mating :

12.0μin 0.30μm

RoHS Status :

ROHS3 Compliant

Plating Thickness :

11μin

Number of Rows :

2

Pbfree Code :

No

Stack Height (Mating) :

7.23mm 7.85mm

Factory Lead Time :

12 Weeks

Insulation Material :

Polyester, Glass Filled

Contact Finish Thickness - Post :

10.0μin 0.25μm

Material Flammability Rating :

UL94 V-0

Number Of PCB Rows :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

Datamate L-Tek

Pitch - Mating :

0.079 2.00mm

Current Rating :

3A

Contact Resistance :

25mOhm

Max Current Rating :

3A

Mating Contact Pitch :

0.079 inch

Mixed Contacts :

No

Max Voltage Rating (AC) :

120V

Reliability :

COMMERCIAL

Contact Material :

BERYLLIUM COPPER

Number of Positions Loaded :

All

Reference Standard :

UL

Additional Feature :

POLARISED

Applications :

Automotive, General Purpose, Military

Contact Gender :

FEMALE

Voltage - Rated :

800V

Mounting Type :

Through Hole

ECCN Code :

EAR99

Length :

7.15mm

Contact Shape :

Circular
