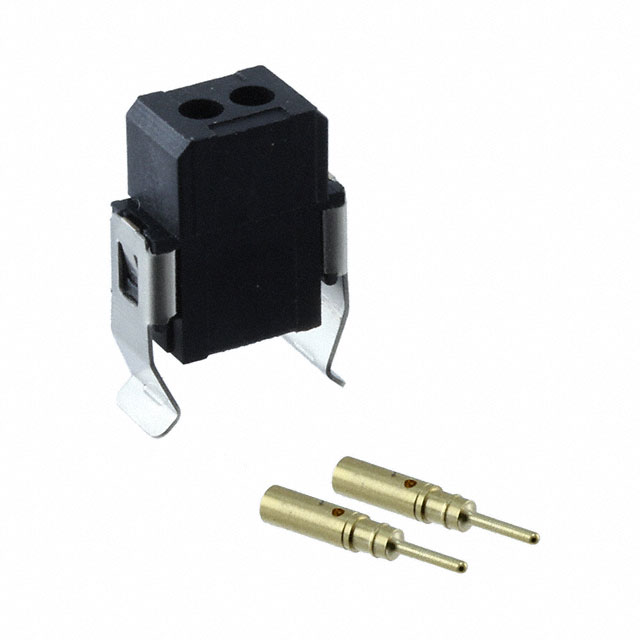

M80-8830205

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Wire Gauge (Max) :

28 AWG

Housing Material :

Polyamide

Current Rating :

3A

Body Depth :

0.354 inch

Contact Finish :

Gold

RoHS Status :

ROHS3 Compliant

MIL Conformance :

No

Total Number of Contacts :

2

IEC Conformance :

No

UL Flammability Code :

94V-0

Rated Current (Signal) :

3A

Mixed Contacts :

No

Wire Gauge :

24-28 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Cable Termination :

Crimp

Contact Type :

Male Pin

Number of Rows :

1

Fastening Type :

Friction Lock

JESD-609 Code :

e4

Flammability Rating :

UL94 V-0

Pitch :

0.079 2.00mm

Connector Type :

PLUG

Mounting Type :

Free Hanging (In-Line)

Reference Standard :

UL

Filter Feature :

No

Voltage - Rated :

120V

Contact Finish Thickness :

10.0μin 0.25μm

Contact Material :

Brass

Number of Positions :

2

Contact Gender :

Male

Option :

GENERAL PURPOSE

Durability :

500 Cycles

Additional Feature :

LATCHED

Reach Compliance Code :

not_compliant

Wire Type :

Discrete

Insulation Resistance :

1GOhm

Reliability :

COMMERCIAL

Wire Gauge (Min) :

24 AWG

Min Operating Temperature :

-55°C

Factory Lead Time :

5 Weeks

DIN Conformance :

No

Mount :

Free Hanging

Published :

2011

Series :

Datamate L-Tek

Polarization Key :

POLARIZED HOUSING

Max Operating Temperature :

125°C

Pbfree Code :

yes

Packaging :

Bulk
