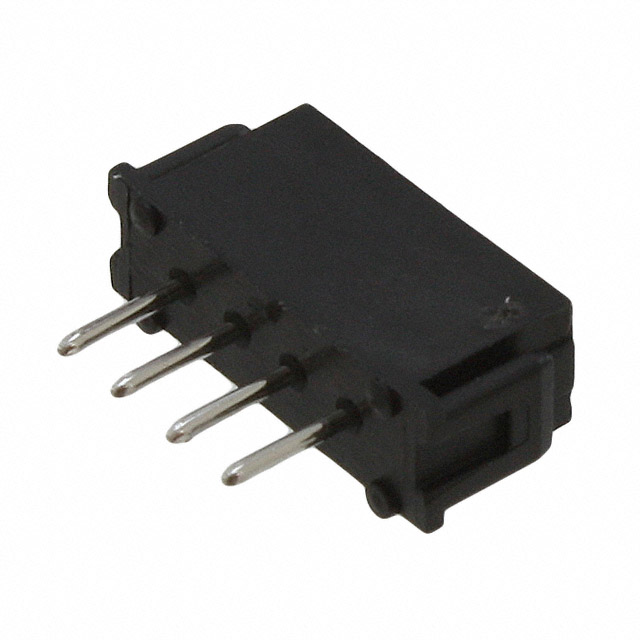

M80-8790422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Material Flammability Rating :

UL94 V-0

Insulation Color :

Black

Insertion Force-Max :

2.78 N

RoHS Status :

Non-RoHS Compliant

Contact Type :

Male Pin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-55°C~125°C

Voltage - Rated :

800V

Stack Height (Mating) :

7.23mm 10.2mm 13.46mm

Factory Lead Time :

11 Weeks

Number of Rows :

1

MIL Conformance :

No

Filter Feature :

No

Contact Finish - Post :

Tin-Lead

Termination :

Solder

Plating Thickness :

30μin

Mounting Type :

Through Hole

Published :

2002

Number of Positions :

4

Number of Conductors :

ONE

ECCN Code :

EAR99

Reliability :

COMMERCIAL

Contact Gender :

Male

Mating Contact Pitch :

0.079 inch

PCB Contact Pattern :

RECTANGULAR

Contact Length - Post :

0.118 3.00mm

Additional Feature :

POLARIZED, SHROUDED

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Contact Finish - Mating :

Gold

JESD-609 Code :

e0

Connector Type :

Header

Durability :

500 Cycles

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Number Of PCB Rows :

1

Pbfree Code :

No

Style :

Board to Board or Cable

DIN Conformance :

No

Option :

GENERAL PURPOSE

Fastening Type :

Latch Holder

Pitch - Mating :

0.079 2.00mm

Number of Positions Loaded :

All

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Package / Case :

SIL

Contact Finish Thickness - Post :

118.1μin 3.00μm

Current Rating (Amps) :

2.2A

Packaging :

Tube

Insulation Height :

0.219 5.56mm

Mount :

Through Hole

Reach Compliance Code :

not_compliant

Terminal Pitch :

2mm

Reference Standard :

UL

Mixed Contacts :

No

Series :

Datamate L-Tek

Shrouding :

Shrouded - 4 Wall

Contact Plating :

Gold, Tin

IEC Conformance :

No

Contact Shape :

Circular

Contact Resistance :

20mOhm

Contact Material :

Phosphor Bronze
