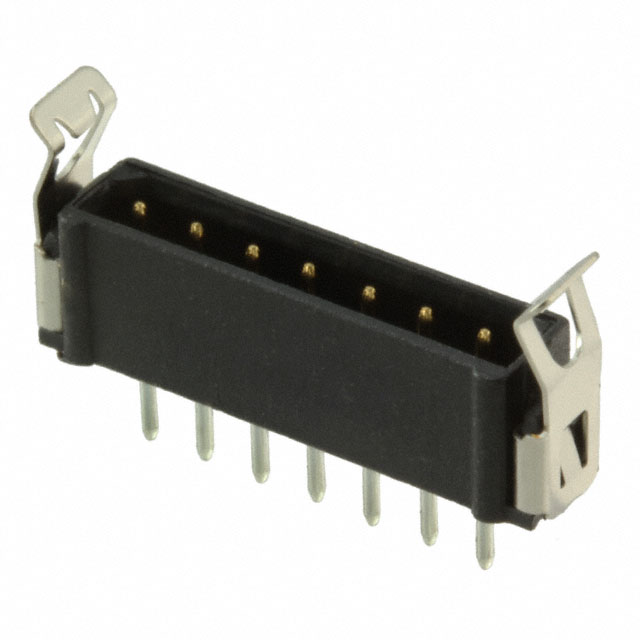

M80-8770722

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Number of Rows :

1

Insulation Height :

0.219 5.56mm

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Material Flammability Rating :

UL94 V-0

Contact Material :

Phosphor Bronze

Plating Thickness :

29μin

Contact Finish - Post :

Tin-Lead

Housing Color :

Black

Number of Conductors :

ONE

Housing Material :

Polyester

Mixed Contacts :

No

Fastening Type :

Latch Lock

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Durability :

500 Cycles

Contact Shape :

Circular

Shrouding :

Shrouded - 4 Wall

Insulation Material :

Polyester, Glass Filled

Max Current Rating :

3A

Stack Height (Mating) :

7.23mm 10.2mm 13.46mm

Additional Feature :

LATCHED

Contact Finish Thickness - Post :

118.1μin 3.00μm

Pbfree Code :

No

Contact Gender :

Male

Number of Positions Loaded :

All

MIL Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

PCB Contact Pattern :

RECTANGULAR

Published :

2012

Reference Standard :

UL

ECCN Code :

EAR99

Reach Compliance Code :

not_compliant

Pitch - Mating :

0.079 2.00mm

Option :

GENERAL PURPOSE

Current Rating (Amps) :

2.2A

Termination :

Solder

Operating Temperature :

-55°C~125°C

Packaging :

Tube

Filter Feature :

No

Terminal Pitch :

2mm

Connector Type :

Header

JESD-609 Code :

e0

UL Flammability Code :

94V-0

Number of Positions :

7

Mount :

Through Hole

Contact Length - Post :

0.118 3.00mm

Mounting Type :

Through Hole

RoHS Status :

Non-RoHS Compliant

IEC Conformance :

No

Max Voltage Rating (AC) :

800V

DIN Conformance :

No

Series :

Datamate L-Tek

Contact Resistance :

25mOhm

Contact Type :

Male Pin

Package / Case :

SIL

Depth :

3.98mm

Number Of PCB Rows :

1

Contact Finish - Mating :

Gold

Factory Lead Time :

13 Weeks

HTS Code :

8536.69.40.40

Length :

18mm

Orientation :

Straight

Style :

Board to Board or Cable
